Installing Required Liferay Artifacts

• Installing Required Liferay Artifacts
  • Installing EE/CE Artifacts from a Zip File
  • Building CE Maven Artifacts from Source
    • Installing Artifacts to a Repository
    • Deploying Artifacts to a Repository
  • Installing CE Artifacts from the Central Repository

To create Liferay plugins using Maven, you’ll need the archives required by Liferay (e.g., required JAR and WAR files). This won’t be problem–Liferay provides them as Maven artifacts.

So how do you get the Liferay artifacts? The exact process depends on whether you’re building plugins for Liferay EE or Liferay CE. If you’re building plugins for Liferay EE, you’ll have to install the Liferay Artifacts manually from a zip file. You can do the same if you’re building plugins for Liferay CE, but there’s a simpler option available: you can automatically install CE artifacts from the Central Repository. Alternatively for Liferay CE, if you absolutely must the latest pre-release changes from our Liferay CE source repository, you can build the Liferay CE artifacts yourself. We’ll demonstrate each of these options.

Note: The EE and CE zip files are a means to install the artifacts to a Maven repository of your choice. In the next few sections, we’ll demonstrate the zip file and Central Repository installation options.

Let’s look at the manual process first, by downloading and installing Liferay artifacts from a zip file.

Installing EE/CE Artifacts from a Zip File

Whether you’re building plugins for Liferay EE or CE, you can get the Liferay artifacts by manually installing them from a zip file. Let’s download the Liferay EE artifacts first.

You can download the Liferay EE artifacts package from Liferay’s Customer Portal. Just follow these steps:

1. Navigate to www.liferay.com and sign in.

2. Go to Places → Customer Portal.

3. Select Liferay Portal from the Downloads panel.

4. Inside Filter by:, select the appropriate Liferay version in the first field and select the Development value in the second field.

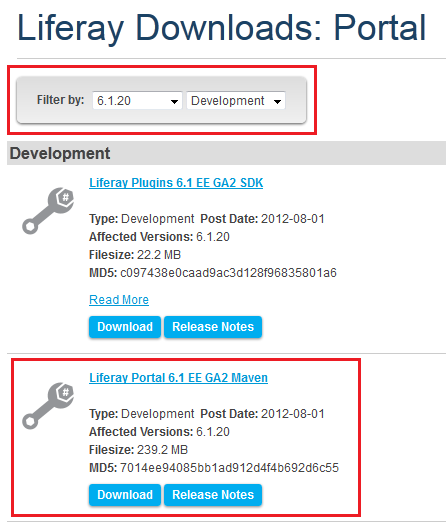

   Figure 9.2: You can download the Liferay Maven EE artifacts from the Liferay Customer Portal.

5. Click Download under the desired Liferay Portal [Version] Maven.

   The Liferay Maven EE artifacts package downloads to your machine.

Get the artifacts for Liferay CE from SourceForge by following these steps:

1. Open your browser to Liferay Portal on SourceForge → http://sourceforge.net/projects/lportal/files/Liferay%20Portal/.

2. Select the Liferay version for which you need Maven artifacts. For example, if you need Maven artifacts for Liferay Portal 6.1.2 CE GA3, select version 6.1.2 GA3.

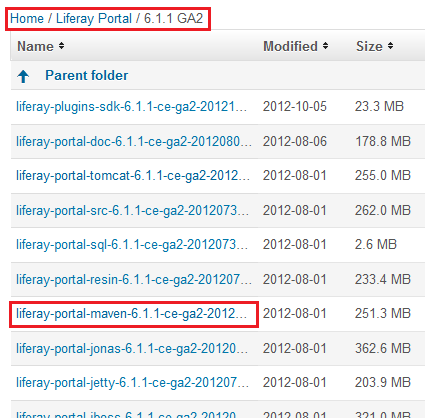

   Figure 9.3: After selecting the Liferay version, simply select the Liferay Portal Maven zip file to download.

3. Select the appropriate zip file. The zip files use naming convention liferay-portal-maven-[version]-[date].zip.

   The Liferay Maven CE artifacts package downloads to your machine.

You can extract the Liferay EE/CE artifacts package zip file anywhere you like. The zip file not only includes the Liferay artifacts, but also includes a convenient script to install and deploy the artifacts to your repositories.

If you’re using a Liferay CE and you want the latest pre-release artifacts from the Liferay CE source repository, you can get them–but you’ll have to build them yourself. Don’t worry, it’s easy. We’ll show you how to build the artifacts from Liferay’s source code next.

Building CE Maven Artifacts from Source

Downloading the Liferay Maven artifacts from Liferay’s customer portal (EE) or from Sourceforge (CE) is useful if you’re interested in using the artifacts for a particular release. However, if you’d like to use the very latest Liferay CE Maven artifacts, you can build them from source. To build the latest Liferay CE Maven artifacts from source, follow these steps:

1. Navigate to your local Liferay Portal CE source project. If you don’t already have a local Liferay Portal CE source project on your machine, you can fork the Liferay Portal CE Github repository, found at http://github.com/liferay/liferay-portal, and clone it your machine.

2. Create an app.server.[user name].properties file in your local Liferay Portal CE source project root directory. Specify the following properties in it:

   app.server.parent.dir=[app server parent directory]

   app.server.[app server name].dir=[app server directory]


   Of course, add the path of your application server’s parent directory and the path of your application server itself after the appropriate equals signs. Also, replace [app server name] with the name of your application server. Note that your app.server.[app server name].dir directory doesn’t need to exist yet; you can create it by invoking an Ant target in the next step. For example, if you’re running Apache Tomcat and your Liferay home directory is /home/jbloggs/liferay/bundles/ce-6.1.x, use the following properties:

   app.server.parent.dir=/home/jbloggs/liferay/bundles/ce-6.1.x

   app.server.tomcat.dir=/home/jbloggs/liferay/bundles/ce-6.1.x/[tomcat version]


3. If an application server doesn’t already exist at the directory specified by your app.server.[app server name].dir property, run ant -f build-dist.xml unzip-[app server name] to unzip a copy of your preferred application server to the specified directory.

   For example, to unzip Apache Tomcat to the directory specified by your app.server.tomcat.dir property, run:

      ant -f build-dist.xml unzip-tomcat


4. Create a releases.[user name].properties in your local Liferay Portal CE source project root directory and specify the following properties:

   gpg.keyname=[GPG key name]

   gpg.passphrase=[GPG passphrase]

   lp.maven.repository.url=http://localhost:8081/nexus/content/repositories/liferay-snapshots

   lp.maven.repository.id=liferay-snapshots


   Of course, replace the values specified above with your own GPG and Maven repository credentials.

   If you don’t have GPG installed and don’t have a public/private GPG key, you should visit http://www.gnupg.org and install GPG before continuing. Once you’ve installed GPG, generate a GPG key by running gpg --gen-key and following the instructions. Once you’ve generated a GPG key, you can find your GPG keyname by running gpg --list-keys.

   Note: The releases.[user name].properties is not required if you only plan to install the Liferay artifacts locally and not deploy them.

5. Open a command prompt, navigate to your Liferay home directory, and build the Liferay artifacts by running

   ant clean start jar


6. Build the Liferay Portal WAR file by running

   ant -f build-dist.xml all zip-portal-war


7. Deploy the Liferay artifacts to your Maven repository by running

   ant -f build-maven.xml deploy-artifacts


   If you want the Liferay artifacts to be installed locally but don’t have a remote Maven repository or don’t want the artifacts to be remotely deployed, you can run the install target instead of the deploy target: ant -f build-maven.xml install-artifacts. Once the Ant target finishes, you should have a time-stamped directory containing the artifacts in your Local Liferay Portal CE source project’s root directory (e.g., liferay-portal/20121105174417071).

Warning: During the process of packaging up the javadoc.jar files for your Liferay artifacts, your machine may experience sluggish performance or an insufficient amount of Java heap space. There are two solutions to this problem:

• Increase the memory available for the Javadoc packaging process: Navigate to [Liferay home]/build.xml and search for the javadoc target. Find the maxmemory property and increase it as desired.

• Skip the Javadoc packaging process: Navigate to [Liferay home]/build-maven.xml and find the prepare-maven target. Within this target, comment out the call to the jar-javadoc target, like below:

Next, we’ll show you how to install the required Liferay release artifacts to your repositories. These steps are applicable for installing artifacts that you downloaded and extracted from a zip file, and for installing artifacts that you built from source.

Installing Artifacts to a Repository

Let’s install the Liferay release artifacts to your local Maven repository for sharing with your team.

1. If you downloaded a Liferay artifacts zip file, navigate to the liferay-portal-maven-[version]directory. This is the root directory extracted from the Liferay artifacts zip file. If you built the artifacts from source, navigate to the time-stamped directory containing the artifacts in your Local Liferay Portal CE source project’s root directory, (e.g., liferay-portal/20121105174417071).

2. To install the artifacts to your local repository, execute

   ant install


   Your console shows output from the artifacts being installed from the Liferay Maven package into your local repository, typically located in your ${USER_HOME}/.m2/repository directory.

Your local repository now contains the Liferay artifacts required to build Liferay plugins. Wasn’t that easy?

If you want to share your Liferay artifacts with teammates, you’ll have to deploy them to a release repository server.

Deploying Artifacts to a Repository

You may find it worthwhile to share your Liferay artifacts with teammates.

Here’s how you do it:

1. Make sure you’ve created a liferay-releases repository server to hold the Liferay Maven artifacts. If you haven’t, see the Managing Maven Repositories section for instructions.

2. Ensure the repository to hold your Liferay artifacts is specified as a server in Maven’s settings.xml file. If it isn’t already, see the Configuring Local Maven Settings section for instructions on adding an entry for the server.

   Here’s an example setting for a repository server named liferay-releases:

   <servers>
       ...
       <server>
           <id>liferay-releases</id>
           <username>admin</username>
           <password>admin123</password>
       </server>
       ...
   </servers>


3. Using your command prompt, navigate to the liferay-portal-maven-[version] directory, or to your time-stamped Liferay Portal artifacts directory. This is the root directory extracted from the Liferay artifacts zip file. Or navigate to your time-stamped Liferay Portal artifacts directory, if you built the artifacts from source.

4. Create a build.[user name].properties file (e.g., build.jbloggs.properties) in your liferay-portal-maven-[version] directory. In the new properties file, specify values for the properties lp.maven.repository.id and lp.maven.repository.url. These refer to your repository’s ID and URL, respectively.

   Here are some example property values:

   lp.maven.repository.id=liferay-releases
   lp.maven.repository.url=http://localhost:8081/nexus/content/repositories/liferay-releases


   Note, if you created a repository in Nexus OSS, as demonstrated in the section Managing Maven Repositories, you can specify that repository’s ID and URL.

5. To deploy to your release repository server, execute

   ant deploy


   Your console shows output from the artifacts being deployed into your repository server.

   To verify your artifacts are deployed, navigate to the Repositories page of your Nexus OSS server and select your repository.

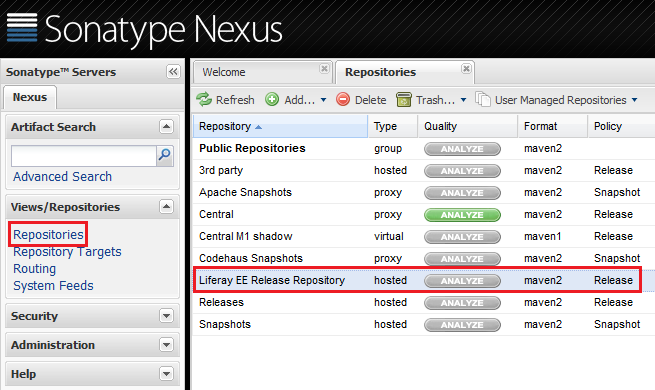

   Figure 9.4: You can easily navigate to your Liferay release repository in Nexus.

   Notice a window appears below displaying the Liferay artifacts now deployed to your repository.

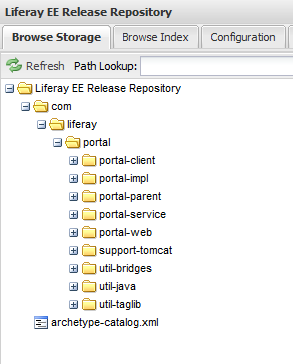

Figure 9.5: Your repository server now provides access to your Liferay Maven artifacts.

Congratulations! You’ve downloaded the Liferay artifacts, installed them to your local repository, and deployed them to your release repository server for sharing with teammates.

If you’re working with Liferay CE, there’s an alternative method of obtaining the necessary Liferay Maven artifacts: you can let Maven download them automatically. Let’s see how.

Installing CE Artifacts from the Central Repository

Liferay offers an option for automatic download and installation of Liferay CE Maven artifacts. They’re publicly available on the Central Repository, located at http://search.maven.org/#search|ga|1|liferay%20maven, and are updated with each Liferay release (e.g., 6.1.0, 6.1.10, 6.1.20, etc.). The first time you use Maven to compile a Liferay plugin project, Maven automatically downloads the required artifacts from the Central Repository into your local repository if they’re not found in your local repository or any of your configured repository servers. You’ll see it happen when you package your Liferay CE plugins.

Now that we have our Maven artifacts set up, let’s configure Liferay IDE with Maven.
