Creating Templates

Creating Content
Step 3B of 3D

Structures, like the one you created in the previous step, need templates to style and display their items. Now you’ll use the FreeMarker templating language to create a template.

Follow these steps to create your template:

  1. Open the Menu (Product Menu) and select The Lunar ResortContentWeb Content.

  2. At the top-right of the screen, select Options (Options) → Templates.

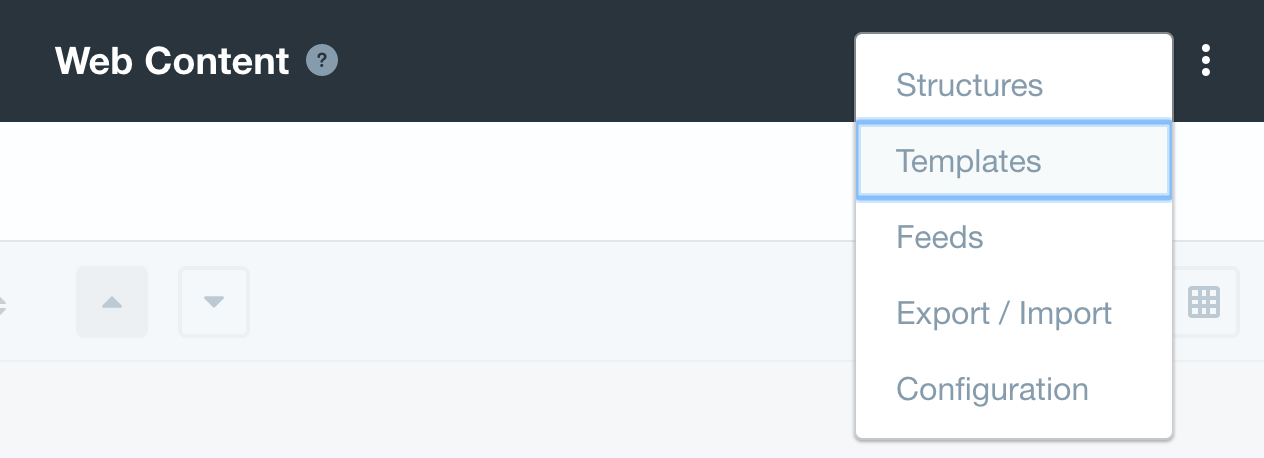

Figure 1: Select Templates from the menu.

Figure 1: Select Templates from the menu.

  1. Click the Add icon (Add) at the bottom-right of the page to begin creating a new template.

  2. Name the template Lunar Guides List.

  3. Now you must select a structure to link with this template. Open the Details section, click the Select button under Structure, and select the Lunar Guides List structure. Click OK when prompted.

Figure 2: Template details.

Figure 2: Template details.

  1. Next, select the template’s language. Still in the Details section, make sure FreeMarker is selected for the Language field (it should be selected by default). FreeMarker uses the FreeMarker Template Language (FTL), which uses HTML, interpolations (${...}), and FTL tags. FreeMarker templates can also include CSS. For more information on FTL, see the FreeMarker documentation. Note that Liferay DXP also supports Velocity and Extensible Stylesheet Language.

  2. Now you’re ready to create the script. First you’ll insert the CSS. This example uses a four column, two row grid layout to define the field positions. The content appears only in columns two and four–the other two columns exist for spacing. This example also defines the text heading styles. In the Script section, replace the code in the editor with this code:

    <style>
       .wrapper {
      display: grid;
      grid-template-columns: 300px, 300px, 300px, 300px;
      grid-gap: 10px;
      grid-auto-rows: minmax(auto, auto);
      text-align: center;
    }

    h1 {
        text-align: center;
    }

    h2 {
       position: relative;
       color: black;
    }

    .item-one {
      grid-column: 2;
      grid-row: 1;
      max-width: 355px;
    }

    .item-two {
      grid-column: 4;
      grid-row: 1;
      max-width: 355px;
    }

    .item-three {
      grid-column: 2;
      grid-row: 2;
      max-width: 355px;
    }

    .item-four {
      grid-column: 4;
      grid-row: 2;
      max-width: 355px;
    }
    </style>

  3. Now you’re ready to create the template’s HTML. Like the structure, you can use the sidebar to the editor’s left to insert fields in the editor. Doing so automatically inserts fields with the appropriate variables. General Variables provides quick access to universal information for your Liferay DXP instance. Fields provides access to the variables that your structure defines. Mousing over a field displays its variable name. Clicking a field adds the code in the editor that retrieves that field’s data.

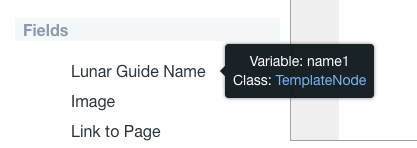

    Figure 3: A fields tooltip shows that fields variable name.

    Figure 3: A field's tooltip shows that field's variable name.

    In this example, however, you’ll copy and paste the following code. This code gets the field values that the user entered, styles the text and images, and puts all the information into divs as defined in your CSS. Add this code in the editor, below the closing </style> tag:

    <h1>${title.getData()}</h1>

    <div class="wrapper">
      <a class="item-one" href="${name1.link1.getFriendlyUrl()}">
      <h2>${name1.getData()}</h2>
        <#if name1.image1.getData()?? && name1.image1.getData() != "">
          <img alt="${name1.image1.getAttribute("alt")}" src="${name1.image1.getData()}" />
        </#if>
      </a>

      <a class="item-two" href="${name2.link2.getFriendlyUrl()}">
      <h2>${name2.getData()}</h2>
        <#if name2.image2.getData()?? && name2.image2.getData() != "">
          <img alt="${name2.image2.getAttribute("alt")}" src="${name2.image2.getData()}" />
        </#if>
      </a>

    <hr />

      <a class="item-three" href="${name3.link3.getFriendlyUrl()}">
      <h2>${name3.getData()}</h2>
        <#if name3.image3.getData()?? && name3.image3.getData() != "">
          <img alt="${name3.image3.getAttribute("alt")}" src="${name3.image3.getData()}" />
        </#if>
      </a>

      <a class="item-four" href="${name4.link4.getFriendlyUrl()}">
      <h2>${name4.getData()}</h2>
        <#if name4.image4.getData()?? && name4.image4.getData() != "">
          <img alt="${name4.image4.getAttribute("alt")}" src="${name4.image4.getData()}" />
        </#if>
      </a>

    </div>

  4. Click Save.

Great! Now you have a template for displaying your structure’s items. Next, you’ll create some content that leverages your structure and template.
