Creating Layouts inside Custom Portlets

Layout templates specify how your portlets and content are organized on your site pages. What if, instead, you want to organize your portlet’s content? <aui> tags let you create layouts using Bootstrap within your portlets. This tutorial explains this process.

Follow these steps:

1. Open your portlet’s JSP and include the AUI taglib declaration if it’s not already included:

   <%@ taglib uri="http://liferay.com/tld/aui" prefix="aui" %>


2. Wrap your portlet’s content in <aui:container> tags. If you wish to only have a portion of your portlet’s content in a layout, wrap that portion with a <aui:container> tags.

3. In between the <aui:container>...</aui:container> tags, add a set of <aui:row> tags for each row that you want in your portlet’s layout.

4. Add a set of <aui:col> tags for each column that you want in the row. Repeat this step for each row in the layout.

A complete example is shown below:

<aui:container>
  <aui:row>
    <aui:col md="12">
      <h1>My Custom Layout Portlet</h1>
    </aui:col>
  </aui:row>
  <aui:row>
    <aui:col md="4" sm="6">
      <h2>Column One</h2>
      <p>
        Lorem ipsum dolor sit amet, consectetur adipiscing elit.
        Integer eget pulvinar quam. Vivamus ornare leo libero, sed
        mollis urna aliquam ac. Duis porta sapien non felis varius, in
        iaculis orci fermentum. Etiam quis molestie elit, in tempor
        risus. Morbi varius elementum lectus at feugiat. Quisque
        dapibus orci ac dui eleifend, ut ullamcorper nulla sagittis.
        Ut ac scelerisque sem.
      </p>
    </aui:col>
    <aui:col md="8" sm="6">
    <h2>Column Two</h2>
      <p>
        Aliquam hendrerit augue sed nisl ullamcorper pulvinar. Donec
        tristique congue erat ac condimentum. Suspendisse vehicula
        nunc vel velit imperdiet dapibus. In hac habitasse platea
        dictumst. Morbi eleifend arcu sit amet magna faucibus, vitae
        posuere erat finibus. Sed hendrerit convallis ipsum id luctus.
        Aliquam aliquam consequat turpis eu vulputate. Nulla vitae
        libero lorem. Proin nec lacus et nunc laoreet posuere.
        Vestibulum euismod vestibulum faucibus. Vivamus dolor justo,
        malesuada ac libero ac, feugiat varius leo. Integer viverra
        nisi vel fringilla aliquam.
      </p>
      <p>
        Suspendisse potenti. Mauris neque nisl, hendrerit a sem at,
        rutrum dictum arcu. Ut aliquet tortor vel tortor interdum
        dictum. Sed non sapien quam. Nunc aliquet in massa elementum
        aliquam. Cras convallis tristique ante ut ultrices. Aenean
        quis congue nulla. Integer in lacus lectus. Mauris maximus,
        nibh sit amet pharetra laoreet, sem dolor eleifend metus, non
        semper sem justo vel mauris. Praesent tristique quis risus
        vulputate faucibus. Nullam feugiat diam vel elit pharetra, id
        porta velit fringilla. Pellentesque metus justo, dictum et
        dolor venenatis, pretium egestas massa. Donec risus nisi,
        elementum in lectus id, imperdiet blandit mauris.
      </p>
    </aui:col>
  </aui:row>
</aui:container>

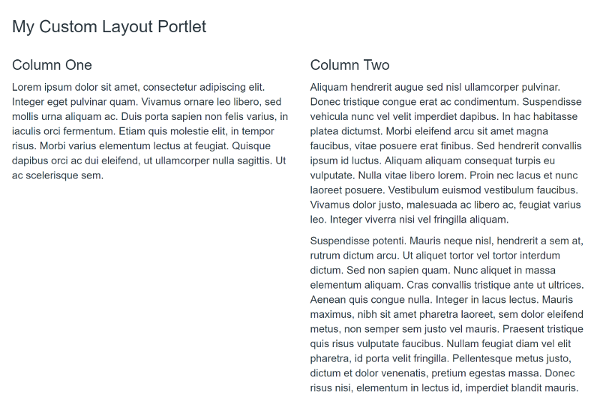

Figure 1: Custom layouts in your portlets let you organize your portlet's content with the user in mind.

The columns in the second row take advantage of Bootstrap’s grid classes to create responsive layouts. On medium sized view ports, column-1 is 33.33% width and column-2 is 66.66% width, but on small sized view ports both column-1 and column-2 are 50% width.

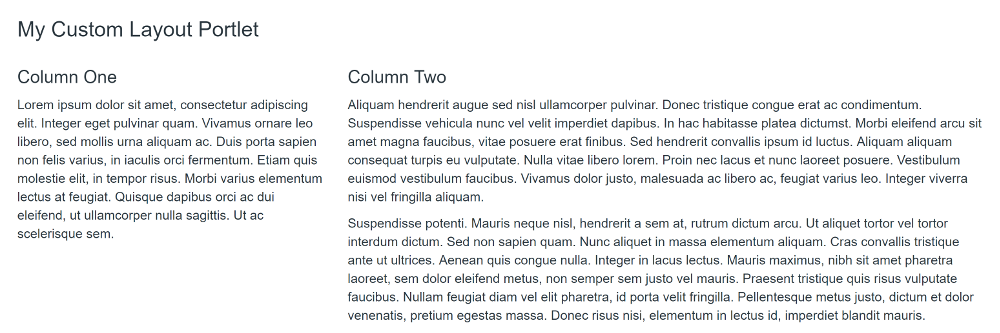

Figure 2: You can take advantage of Bootstrap's grid classes to create responsive layouts within your custom portlets.

AUI Layout Tag Attributes

This section contains a list of the available attributes for each tag along with a brief description of its purpose.

AUI Container

The <aui:container> tag creates a container <div> tag to wrap <aui:row> components and offer additional styling.

It supports the following attributes:

Attribute	Type	Description
cssClass	String	A CSS class for styling the component
dynamicAttributes	Map<String, Object>	Map of data- attributes for your container
fluid	boolean	Whether to enable the container to span the entire width of the viewport. The default value is true
id	String	An ID for the component instance

AUI Row

The <aui:row> tag creates a row to hold <aui:col> components.

It supports the following attributes:

Attribute	Type	Description
cssClass	String	A CSS class for styling the component
id	String	An ID for the component instance

AUI Col

The <aui:col> tag creates a column to display content in an <aui:row> component.

It supports the following attributes:

Attribute	Type	Description

cssClass | String | A CSS class for styling the component. id | String | An ID for the component instance. lg | String | Comma separated string of numbers 1-12 to be used for Boostrap grid col-lg- md | String | Comma separated string of numbers 1-12 to be used for Boostrap grid col-md- sm | String | Comma separated string of numbers 1-12 to be used for Boostrap grid col-sm- xs | String | Comma separated string of numbers 1-12 to be used for Boostrap grid col-xs- span | int | The width of the column in the containing row as a fraction of 12. For example, a span of 4 would result in a column width 4/12 (or 1/3) of the total width of the containing row. width | int | The width of the column in the containing row as a percentage, overriding the span attribute. The width is then converted to a span expressed as ((width/100) x 12), rounded to the nearest whole number. For example, a width of 33 would be converted to 3.96, which would be rounded up to a span value of 4.

Now you know how to create layouts inside your portlets!
