The Management Bar gives administrators control over search container results. It lets you filter, sort, and choose a display style for search results, so you can quickly identify the document, web content, asset entry, or whatever you’re looking for in your app. The Management Bar is fully customizable, so you can implement all the controls, or just the ones your app requires.

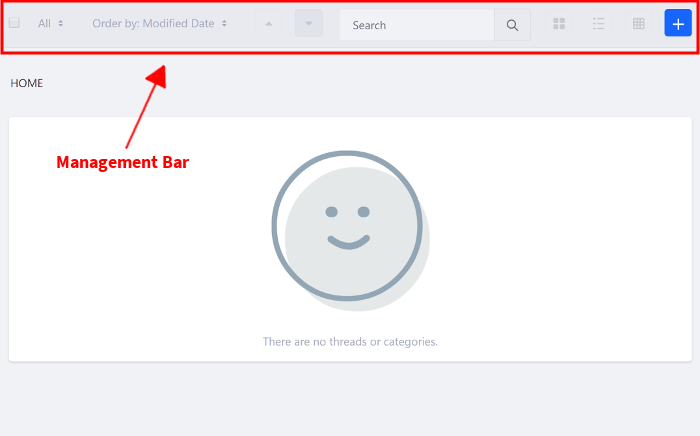

Figure 1: The Management Bar lets the user customize how the app displays content.
The Management Bar has a few key sections. Each section is grouped and configured using different taglibs:
The
<liferay-frontend:management-bar-buttons>
tag
wraps the Management Bar’s button elements:
Figure 2: The `management-bar-buttons` tag contains the Management Bar's main buttons.
The
<liferay-frontend:management-bar-sidenav-toggler-button>
tag
implements slide-out navigation for the info button.
The
<liferay-frontend:management-bar-display-buttons>
tag
renders the app’s display style options.
Figure 3: The `management-bar-display-buttons` tag contains the content's display options.
The
<liferay-frontend:management-bar-filters>
tag
wraps the app’s filtering options. This filter should be included in all control
panel applications. Filtering options can include sort criteria, sort ordering,
and more.
Figure 4: The `management-bar-filters` tag contains the content filtering options.
Finally, the
<liferay-frontend:management-bar-action-buttons>
tag
wraps the actions that you can execute over selected items. You can select
multiple items between pages. The management bar keeps track of the number of
selected items for you.
Figure 5: The management bar keeps track of the items selected and displays the actions to execute on them.
For example, here’s the Management Bar configuration in the Trash app:
<liferay-frontend:management-bar
includeCheckBox="<%= true %>"
searchContainerId="trash"
>
<liferay-frontend:management-bar-buttons>
<liferay-frontend:management-bar-sidenav-toggler-button />
<liferay-portlet:actionURL name="changeDisplayStyle"
varImpl="changeDisplayStyleURL">
<portlet:param name="redirect" value="<%= currentURL %>" />
</liferay-portlet:actionURL>
<liferay-frontend:management-bar-display-buttons
displayViews='<%= new String[] {"descriptive", "icon",
"list"} %>'
portletURL="<%= changeDisplayStyleURL %>"
selectedDisplayStyle="<%= trashDisplayContext.getDisplayStyle()
%>"
/>
</liferay-frontend:management-bar-buttons>
<liferay-frontend:management-bar-filters>
<liferay-frontend:management-bar-navigation
navigationKeys='<%= new String[] {"all"} %>'
portletURL="<%= trashDisplayContext.getPortletURL() %>"
/>
<liferay-frontend:management-bar-sort
orderByCol="<%= trashDisplayContext.getOrderByCol() %>"
orderByType="<%= trashDisplayContext.getOrderByType() %>"
orderColumns='<%= new String[] {"removed-date"} %>'
portletURL="<%= trashDisplayContext.getPortletURL() %>"
/>
</liferay-frontend:management-bar-filters>
<liferay-frontend:management-bar-action-buttons>
<liferay-frontend:management-bar-sidenav-toggler-button />
<liferay-frontend:management-bar-button href="javascript:;"
icon="trash" id="deleteSelectedEntries" label="delete" />
</liferay-frontend:management-bar-action-buttons>
</liferay-frontend:management-bar>
