Designing Uniform Content

If you’ve ever launched a web site, you know that as it grows, you can experience growing pains. This is the case especially if you’ve given lots of people access to the site to make whatever changes they need to make. Without preset limitations, users can display content in any order and in any manner they desire (think huge, flashing letters in a font nobody can read). Content can get stale, especially if those responsible for it don’t maintain it like they should. And sometimes, content is published that should never have seen the light of day.

Thankfully, Liferay WCM helps you handle all of those situations. You can use Structures to define which fields are available to users when they create content. These can be coupled with Templates that define how to display that content. Content won’t get stale, because you can take advantage of the Scheduling feature to determine when content is displayed and when it’s removed. Additionally, you can configure Liferay DXP’s built-in Workflow system to set up a review and publishing process so only what you want winds up on the live site. Liferay DXP gives you the management tools you need to run everything from a simple, one-page web site to an enormous, content-rich site.

All of this starts with structures.

Creating Structured Web Content

Structures are the foundation for web content. They determine which fields are available to users as they create new items for display. Structures not only improve manageability for the administrator, they also make it much easier for users to quickly add content.

For example, say you’re managing an online news magazine. All your articles need to contain the same types of information: a title, a subtitle, an author and one or more pages of text and images that comprise the body of the article. If Liferay DXP only supported simple content as has been described above, you’d have no way to make sure your users entered a title, subtitle, and author. You might also get articles that don’t match the look and feel of your site. If titles are supposed to be navy blue but they come in from your writers manually set to light blue, you need to spend time reformatting them before they are published.

Structures give you the ability to provide a format for your content so your users know what needs to be entered to have a complete article. Using structures, you can provide a form for your users which spells out exactly what is required and can be formatted automatically using a template.

You create a structure by adding form controls such as text fields, text boxes, text areas (HTML), check boxes, select boxes and multi-selection lists. Also, you can add specialized, Liferay-specific application fields such as an Image Uploader and Documents and Media right onto the structure. Furthermore, you can move the elements around by dragging them where you want them. This makes it easy for you to prototype different orders for your input fields. Additionally, elements can be grouped together into blocks which can then be repeatable. Template writers can then write a template which loops through these blocks and presents your content in innovative ways, such as in sliding navigation bars, content which scrolls with the user, and more.

Next you’ll take a look at how you can create and edit structures through the Manage Structures interface.

Editing Structures

Go to your site’s Site Administration menu and select Web Content from the Content section. The first way to access the Manage Structures interface is by navigating to the Options icon () in the top right of the page and selecting Structures. This opens a popup showing all the web content structures that exist in your currently selected scope. Here, you can add new web content structures, edit existing ones, manage the templates associated with a structure, edit the permissions of a structure, and copy or delete structures.

Copying web content structures can be useful if you’d like to create a new web content structure that’s similar to an existing one, but you don’t want to start from scratch. Liferay DXP generates a unique portal ID for the copied structure, but every other attribute of the copied structure, including the name, is the same as that of the original. Once you’ve copied a web content structure, you should enter a new name for it to avoid confusing it with the original. When you copy a web content structure, you’ll be prompted to choose whether to copy any detail templates or list templates associated with the structure. For information on detail templates and list templates, please refer to the Using Web Forms and Dynamic Data Lists section.

Figure 1: You can access the Manage Structures interface by clicking the Options icon → *Structures* from the Web Content page.

The second way to access the Manage Structures interface is directly from the web content article menu. Click Add → Basic Web Content from the Web Content page to add another piece of content to your Liferay instance. Instead of going right for the content, this time you’ll first create a structure. To access the Manage Structures interface, simply click on Structure and Template in the bottom dropdown menu and click Select for the Structure heading. You’ll notice there is a Basic Web Content structure and template available by default. This structure and template are used automatically if a custom structure and template are not added. You have the option of editing the default structure and template, if desired. To create a new structure in your chosen scope, simply click on the Add button () in the Manage Structures popup.

It’s very easy to create and edit structures: all you have to do is drag elements into the structure and then give them names. For instance, select the Text element and drag it onto the structure. You can do the same with any of the elements. To remove it from the structure, simply select the Delete icon () in the upper right corner of the element. You also have the ability to duplicate the element, which can be done by selecting the Duplicate button (). You’ll learn about the Configuration () button later.

Web content structures also have the capability of inheriting characteristics from other structures. When a parent structure is configured, the child structure inherits the parent’s fields and settings. Using this feature is helpful when you want to make a similar structure to one that already exists. For example, if you’d like to create an in-depth Lunar Resort sports article in addition to a regular Lunar Resort sports article, you can simply inherit the characteristics of the regular article and only add additional fields to the more in-depth article. When the in-depth article is configured, it will display its parent’s fields in addition to its own fields.

Note: In some instances, there can be more than one structure with the same structureKey. For example, this can happen when exporting a global structure and then importing it back into a site. This scenario would have global and site scoped structures with identical structureKeys. If this happens, you can no longer use the global structure. This is because Liferay DXP is configured to follow a specific hierarchy when choosing structures with the same structureKey: current site > parent site > global scope.

The WebDAV URL feature is available for web content structures and templates so users could upload and organize resources from both a web interface and the file explorer of their desktop operating system. With the WebDAV URL, site administrators are capable of adding, browsing, editing, and deleting structures and templates on a remote server. After you complete your structure, you can access the WebDAV URL by re-opening the structure or template and clicking the Details section. If you’d like the see WebDAV in action, visit the WebDAV Access section.

Note: Some operating systems require a WebDAV server to be class level 2 (i.e., to support file locking) before allowing files to be read or written. The Documents and Media library uses a class level 2 WebDAV server but Web Content structures and templates do not. This means that Liferay DXP’s Document and Media library supports WebDAV file locking but Web Content structures and templates do not. However, on operating systems which require WebDAV servers to be class level 2, it’s possible to avoid the restriction by using third-party WebDAV clients (e.g., Cyberduck).

Another method to edit your structure is switching to Source mode and manually customizing your structure by editing its XML file. You’ll notice by default the View mode is selected. Click the Source tab to switch to Source mode. This method is for the more experienced developers.

Take a moment to add, delete, and rearrange different elements.

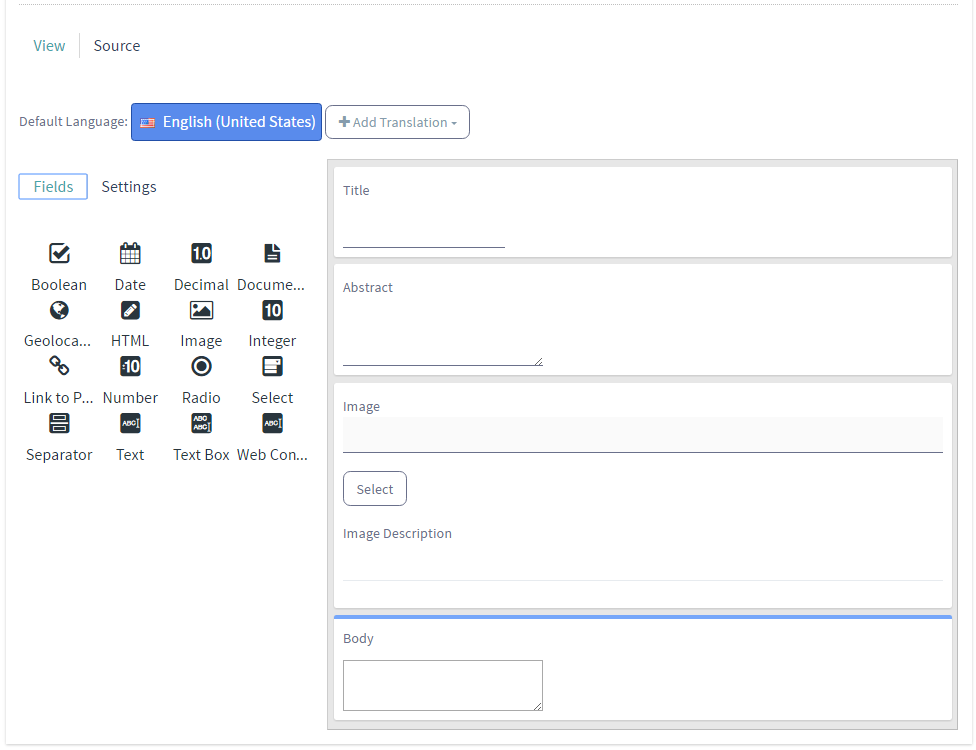

Figure 2: The structure editor gives you many options to customize your Web Content.

Liferay DXP supports the following fields in structures:

Boolean: Adds a checkbox onto your structure, which stores either true (checked) or false (unchecked). Template developers can use this as a display rule.

Date: Adds a preformatted text field that displays a convenient date picker to assist in selecting the desired data. The format for the date is governed by the current locale.

Decimal: Similar to Number, except that it required a decimal point (.) be present.

Documents and Media: Adds an existing uploaded document to attach to the structure. Also has the ability to upload documents into the Document Library.

Geolocation: Adds a map that displays a configured location. The geolocation system can work in two ways: letting the system know your current location (especially useful on mobile devices) and giving the user directions to a concrete place.

HTML: An area that uses a WYSIWYG editor to enhance the content.

Image: Adds the browse image application into your structure. You have the option of selecting an image from the Documents and Media library or to upload an image from your computer’s storage. If uploading an image from your personal computer to the web content article, it is only available for that article.

Integer: Similar to Number, except that it constrains user input to non-fractional numbers.

Link to Page: Inserts a link to another page in the same site.

Number: Presents a text box that only accepts numbers as inputs, but puts no constraints on the kind of number entered.

Radio: Presents the user with a list of options to choose from using radio button inputs.

Select: Presents a selection of options for the user to choose from using a combo box. Can be configured to allow multiple selections, unlike Radio.

Separator: Adds a line separator between fields, useful for organization purposes.

Text: Used for items such as titles and headings.

Text Box: Used for the body of your content or long descriptions.

These fields provide all you need to model any information type you would want to use as web content. Liferay customers have used structures to model everything from articles, to video metadata, to databases of wildlife. You’re limited only by your imagination. To fuel that imagination, you’ll look more closely at field settings.

Editing Field Settings

When creating a new structure, it is essential that you set variable names. Template writers can use these variables to refer to elements on your form. If you don’t set variable names, Liferay DXP generates random variable names and these can be difficult for a template writer to follow. For example, consider a field called Author. You might create this field in your form but the underlying variable name in the structure might look something like TextField4882. The template writer needs to create markup for your structure and place the Author field in a certain spot in the markup. How will he or she know which field is Author when they’re all named randomly?

To solve this problem, all you need to do is set a variable name for each field as you add it to your structure. Go ahead and do this now. In your structure, add an element HTML. To change its field label and variable name, you’ll need to access the field’s settings. Hover over the field and select the Configuration icon () that appears in the upper right corner. Change the Field Label value to Instructions and the Name value (variable name) to Steps. Now your template writer has a variable by which he or she can refer to this field.

Here’s a list of all the configurable settings available for a structure’s fields:

Type: Lists the type of field placed in the definition. This is not editable but is available to reference from a template.

Field Label: Sets the text that can be displayed with the field. This is the human-readable text that the user sees.

Show Label: Select Yes to display the Field Label.

Required: Select Yes to mark the field required. If a field is required, users must enter a value for it in order to submit content using this structure.

Name: The name of the field internally, automatically generated. Since this is the variable name that you can read the data from in a template, you should give a more memorable name here.

Predefined Value: Specifying predefined values for structure forms is a way to specify defaults. When a user creates a new web content article based on a structure that has predefined values for various fields, the predefined values appear in the form as defaults for those fields.

Tip: Each field can have a small help icon, with a tooltip attached that displays helpful information. If you would like to provide text for the tooltip you may enter it here.

Indexable: Select Yes to enable Liferay DXP to index your field for search.

Localizable: Select Yes to enable Liferay DXP to localize your field.

Repeatable: Select Yes to make your field repeatable. Your users can then add as many copies of this field as they like. For example, if you’re creating a structure for articles, you might want a repeatable Author field in case you have multiple authors for a particular article.

Multiple: Select Yes to enable a multi-selection list (only available for Select).

Options: Changes the options available for selection. You’re able to add and remove options as well as edit each individual option’s display name and value (only available for Radio and Select).

Style: Changes the line separtor’s style (only available for Separator).

For the Lunar Resort structure, type something in the Tip field that helps users know what to put into the Body element (example: This is an HTML text area for the body of your content). Now, when users hover over the Help icon near your title, your tip is displayed.

Structure Default Values

Structure Default Values let you easily fill in values which will be repeated for content created from that structure. You can use Structure Default Values to set defaults for Liferay’s standard asset fields (like tags, categories, and related assets) and the content of the structure fields, as well as setting a default template for displaying the structure data.

Returning to the newspaper scenario again, assume you want all sports articles to have the same display page (sports page), the same categories, or the same set of tags. Instead of adding them for each article or wondering if your users are adding them to every web content article, you can add these characteristics once for every sports article by creating default values for the structure. Creating default values is not part of creating a new structure, so make sure you have an existing structure.

To edit a structure’s default values, go to Web Content in the Content section of Site Administration and click the Options icon () → Structures to see the structures list. Find the Actions button () for the desired structure and select Edit Default Values from the menu to view a window like the one below. This form allows you to manage the structure settings.

Figure 3: You can edit default values via the *Actions* button of the Manage Structures interface.

Every new web content you create with this structure is preloaded with the data you inserted. Next, you’ll learn about assigning permissions.

Assigning Permissions

Setting permissions on structures is done using the same procedure as permissions everywhere else in Liferay. Most users should not have the ability to edit structures. Structures are coupled with templates, which require some web development knowledge to create. This is why only trusted developers should be able to create structures and templates. Users, of course, should be able to view structures. The View permission enables them to make use of the structures to create content.

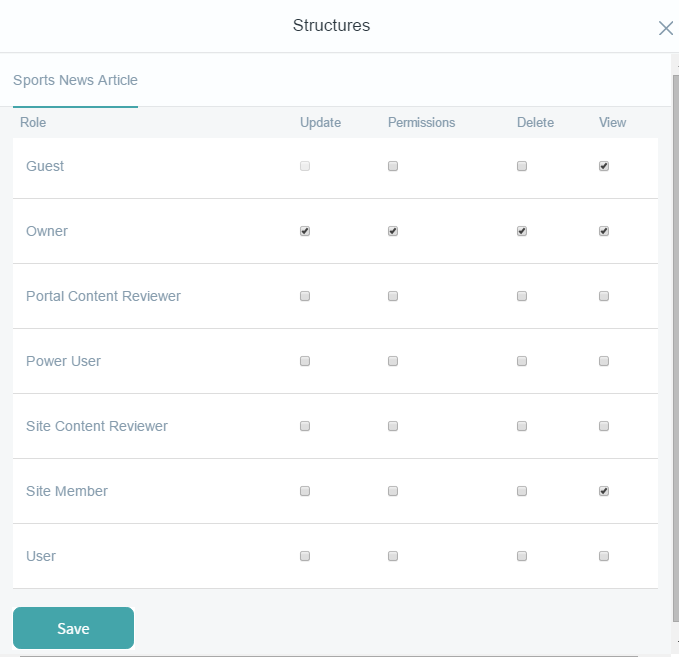

Figure 4: You're able to assign structure permissions via the *Actions* button.

You can grant or deny permissions based on Roles and this is the recommended way to handle permissions for structures.

Now that you understand what structures are used for, you need to understand the other half of Liferay DXP’s web content management system: templates.

Designing Web Content with Templates

Developers create templates to display the elements of the structure in the markup they want. Content can then be styled properly using CSS, because markup is generated consistently by the template when structured content is displayed. In essence, templates are scripts that tell Liferay DXP how to display content in the structure. Any changes to the structure require corresponding changes to the template, because new or deleted fields produce errors on the page. If users enter content into a structure, it must have a matching template. You have options, however, for whether you want your template to be permanently linked to your structure. Generic templates are templates that are not tied to a structure, which allows for reusable code that can be imported into other templates. Without a template, Liferay DXP has no idea how to display content which has been created using a custom structure.

You’ll look more closely at the types of templates Liferay DXP supports next.

Template Types (FTL, VM, and XSL)

Liferay DXP supports templates written in three different templating languages, to support the skill sets of the largest number of developers. This increases the chances you can jump right in and use whichever one you’ve already used before. If you haven’t yet been exposed to any of them, your best bet is FreeMarker or Velocity, as they are less “chatty” than XSL and extremely simple to understand.

FTL (FreeMarker Template Language): FreeMarker is a templating language which could be considered a successor to Velocity. It has some advantages over Velocity for which it sacrifices some simplicity, yet it is still easy to use. If you haven’t used any of the template languages before, FreeMarker is recommended: you’ll get up to speed the fastest.

VM (Velocity Macro): Velocity is a scripting language that lets you mix logic with HTML. This is similar to other scripting languages, such as PHP, though Velocity is much simpler.

Note: The Velocity template language is deprecated for Liferay DXP 7.0.

XSL (Extensible Style Sheet Language): XSL is used in Liferay templates to transform the underlying XML of a structure into markup suitable for the browser. While it may not be as clean and compact as Velocity or FreeMarker, it’s widely used for transforming XML into other formats and it’s very likely your developers have already been exposed to it.

Adding Templates

Liferay WCM makes it easy to create structures, templates, and content from the same interface. You’ll go through the entire flow of how you’d create a structure, link it to a template, and then create content using them both. You’ll use FreeMarker for your template and lay out the structure fields systematically to go along with the format you’ve defined for your content.

1. Go back to the Web Content section of the Site Administration page and click Add → Basic Web Content.

2. Select Structure and Template from the bottom menu and click Select under the Structures heading to access the Manage Structures interface.

3. Click on the Add button ().

4. Name the structure News Article and add the following fields:

   Field Type	Field Label	Name
   Text	Title	title
   Text Box	Abstract	abstract
   Image	Image	image
   HTML	Body	body

5. Click Save.

6. In the Manage Structures interface, click Choose next to the News Article structure that you created.

7. In the New Web Content form, click Select under the Template heading to access the Manage Templates interface.

8. Click Add, enter the name News Article, and add a description.

9. Make sure FreeMarker is selected as the script language (it’s the default).

10. If you’ve written the script beforehand, you can select Browse to upload it from your machine. Otherwise, you can type the script directly into the script editor window.

11. Click Save.

12. Click Choose next to the News Article template you created.

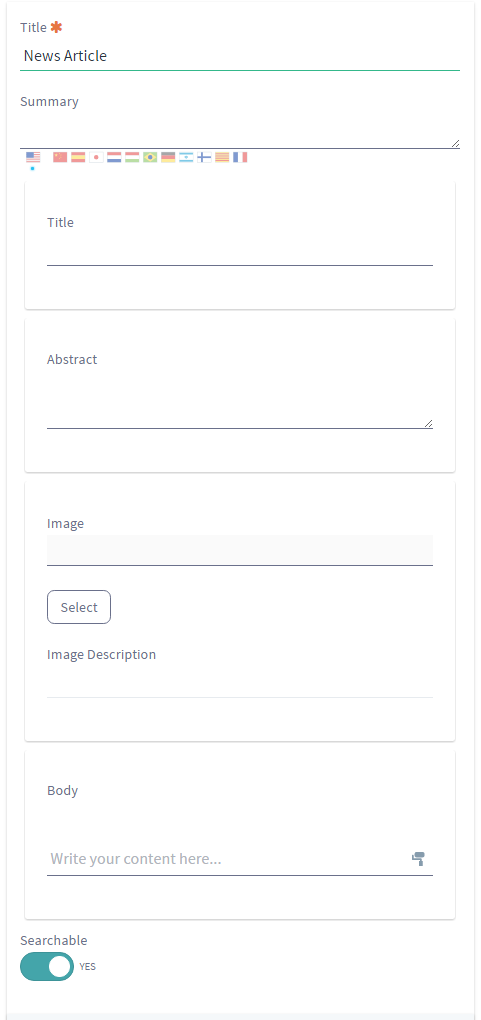

13. On the New Web Content form, you’ll see the Title, Abstract, Image, and Body fields that you defined for the News Article structure. The News Article template should also be selected.

14. Populate the fields and click Publish to publish your News Article.

Below is the template script for this structure. It is written in FreeMarker:

<#assign renderUrlMax = request["render-url-maximized"]>
<#assign namespace = request["portlet-namespace"]>
<#assign readmore = request.parameters?is_hash && request.parameters.read_more?? && getterUtil.getBoolean(request.parameters.read_more?first, false)>
<h1>${title.getData()}</h1>
<#if readmore>
<p>${abstract.getData()}</p>
<p>${body.getData()}</p>
<#else>
<p>
<img src="${image.getData()}" border="0" align="right">
${abstract.getData()}</p>
<a href="${renderUrlMax}&${namespace}read_more=true">Read More</a>
</#if>

This template is small but accomplishes a lot. First, a portlet URL which maximizes the portlet is created. Once this is done, the template gets the namespace of the portlet. This is important to avoid URL collisions with other URLs that might be on the page.

After this, the template attempts to get a request parameter called read_more. Whether or not this was successful is the key to the rest of the script:

• If the template got the read_more parameter, it displays the abstract and the body below the title (which is always displayed).

• If the template didn’t get the read_more parameter, it displays the image, the abstract and the link created above, which sets the read_more parameter.

When this template is rendered, it looks something like this:

Figure 5: The initial and expanded views for the Lunar Resort News Article. After clicking *Read More*, you're able to read the full text body.

Note: During the creation of a web content article, Liferay DXP provides an Options → Preview button that gives you the option to preview your article as a final product before publishing. In some instances, the preview does not give an accurate depiction of the web content article. For example, fields provided by the request variable are not available because the request is not populated until the web content is rendered on a Liferay page. Therefore, the preview of the article would display errors. Use the Preview functionality with caution.

Liferay DXP also provides the ability to create generic templates that aren’t connected to a specific structure. In previous versions of Liferay, each template had to be associated with a structure. Now, you have options for whether to permanently assign a template to a structure or create a generic template and reuse its code for any structure.

Suppose you have three different Lunar Resort web content articles and structures with similar aesthetics. Instead of creating three different templates from scratch, you can use the same generic template for all three and build off of it. This creates a smarter and more efficient process when creating a multitude of similar web content articles.

You can also embed applications in web content templates. This is a convenient way to ensure that specified apps are always located inside your web content article. Core apps and custom apps, whether instanceable or non-instanceable can be embedded in web content templates. Below are examples of embedding the Currency Converter app in FreeMarker and Velocity:

FreeMarker:

<@example_portlet_ext["runtime"] portletName="com_liferay_currency_converter_web_portlet_CurrencyConverterPortlet" />

Velocity:

$theme.runtime("com_liferay_currency_converter_web_portlet_CurrencyConverterPortlet");

Warning: The theme variable is no longer injected into the FreeMarker context. For more information about why the theme variable was removed for Liferay DXP 7.0 and suggestions for updating your code, visit the Taglibs Are No Longer Accessible via the theme Variable in FreeMarker breaking change entry.

In addition to embedding applications in templates, you can embed a template within another template. This allows for reusable code, JS library imports, scripts, or macros. The template that you embed should be a generic template with no structure assigned to it. To create a template with no structure, leave the structure field empty when you create the template. To reference a template from within another template, you will need the Template Key.

Figure 6: You can find the Template Key when view the Edit page for a template..

Below are examples of embedding template in FreeMarker and Velocity:

FreeMarker

<#include "${templatesPath}/[template-key]" />

Velocity

#parse ("$templatesPath/[template-key]")

Liferay’s taglibs are also accessible to web content administrators developing in FreeMarker. There is no need to instantiate these taglibs within your FreeMarker template; they’re already provided for you automatically. You can access these taglibs by indicating the TLD’s file name with underscores. For instance, the above FreeMarker example accessed a tag in the liferay-portlet-ext.tld file by specifying @example_portlet_ext. This is not available for Velocity users, since Velocity is deprecated for Liferay DXP 7.0.

For cases where you’re creating your template within Liferay DXP, you can use the template editor. On the left side of the template editor, you’ll notice a palette of common variables used for making web content templates. This is a great reference when creating your template. To place one of the variables onto the template editor, simply position your cursor where you want the variable placed, and click the variable name. If the variable name doesn’t give you sufficient information on the variable’s functionality, you can hover your pointer over it for a more detailed description.

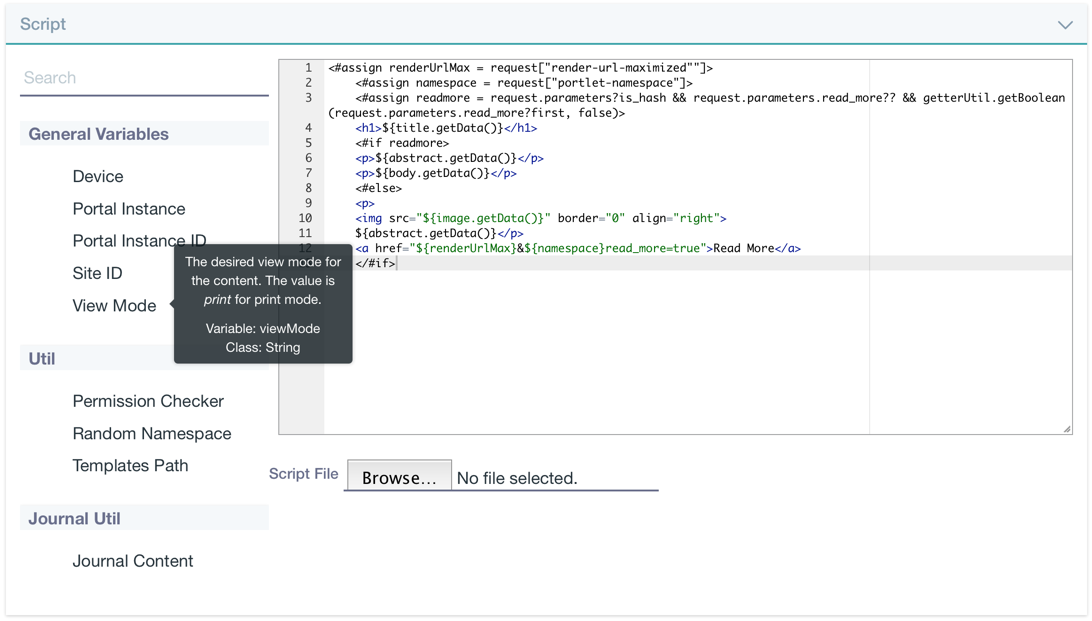

Figure 7: You can hover your pointer over a variable for a more detailed description.

The interactive template editor is available for the FreeMarker, Velocity, and XSL languages. Depending on which language you select, the variable content changes so you’re always adding content in the language you’ve chosen. Another cool feature for the template editor is the autocomplete feature. It can be invoked by typing ${ which opens a drop-down menu of available variables. By clicking one of the variables, the editor inserts the variable into the template editor.

Note: The utilLocator, objectUtil, and staticUtil variables for FreeMarker and the utilLocator variable for Velocity are disabled by default. These variables are vulnerable to remote code execution and privilege escalation, and should be used with caution, if enabled.

After you’ve saved your template, Liferay DXP provides a WebDAV URL and static URL. These values access the XML source of your structure. You can find these URLs by returning to your template after it’s been saved and expanding the Details section. For more information on WebDAV and the uses of the WebDAV URL, reference the WebDAV Access section.

Now that you’ve created a handsome template and know how to use the template editor, it’s time to decide who the lucky people are that get to use your new template.

Assigning Template Permissions

Permissions for templates are similar to permissions for structures. As with structures, you only want specific developers editing and creating templates. You may, however, want to make the templates viewable to some content creators who understand the template scripting language but are not directly writing the scripts. You can determine who views and interacts with the template by navigating to the Options button () at the top right and selecting Templates. Then select the Action button () and click Permissions.

You can grant or deny permissions based on Roles. For instance, you may create a role with the ability to update the template and create a second role that can both update and delete. Liferay DXP makes it possible to assign permissions based on the roles and responsibilities within your organization.

Whether your site is small and static or large and dynamic, Liferay’s WCM enables you to plan and manage it. With tools such as the WYSIWYG editor, structures and templates, you can quickly add and edit content. With the Web Content Display, you can rapidly select and configure what content to display. You’ll find that managing your site becomes far easier when using Liferay DXP’s Web Content Management system.
