Cards visually represent data. Use them for images, document libraries, user profiles and more. There are four main types of Cards:
- Image Cards
- File Cards
- User Cards
- Horizontal Cards
Each of these types is covered in this tutorial.
Image Cards
Image Cards are used for image/document galleries.
Image Card:
<clay:image-card
actionItems="<%= cardsDisplayContext.getDefaultActionItems() %>"
href="#1"
imageAlt="thumbnail"
imageSrc="https://images.unsplash.com/photo-1506976773555-b3da30a63b57"
subtitle="Author Action"
title="Madrid"
/>

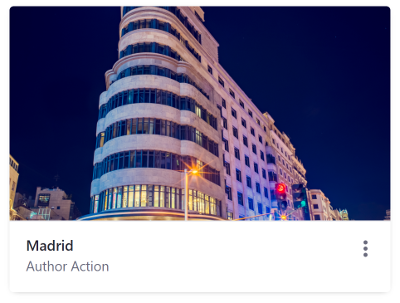

Figure 1: Image Cards display images and documents.
Image Card with icon:
<clay:image-card
actionItems="<%= cardsDisplayContext.getDefaultActionItems() %>"
icon="camera"
subtitle="Author Action"
title="<%= SVG_FILE_TITLE %>"
/>
Figure 2: Image Cards can also display icons instead of images.
Image Card empty:
<clay:image-card
actionItems="<%= cardsDisplayContext.getDefaultActionItems() %>"
subtitle="Author Action"
title="<%= SVG_FILE_TITLE %>"
/>

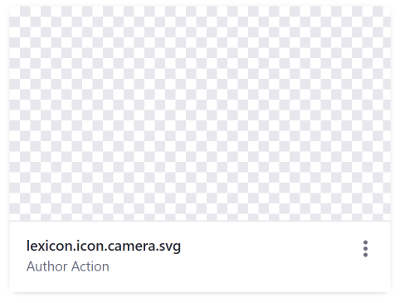

Figure 3: Cards can also display nothing.
Cards can also contain file types. Specify the file type with the filetype
attribute:
<clay:image-card
actionItems="<%= cardsDisplayContext.getDefaultActionItems() %>"
fileType="JPG"
fileTypeStyle="danger"
href="#1"
imageAlt="thumbnail"
imageSrc="https://images.unsplash.com/photo-1499310226026-b9d598980b90"
subtitle="Author Action"
title="California"
/>

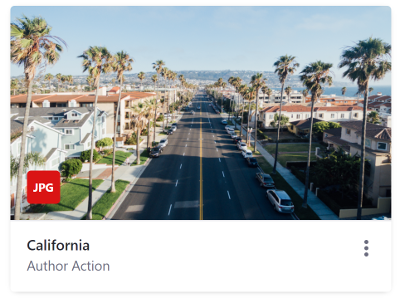

Figure 4: Cards can also contain file types.
Include the labels attribute to add a label to a Card:
<clay:image-card
actionItems="<%= cardsDisplayContext.getDefaultActionItems() %>"
fileType="JPG"
fileTypeStyle="danger"
href="#1"
imageAlt="thumbnail"
imageSrc="https://images.unsplash.com/photo-1503703294279-c83bdf7b4bf4"
labels="<%= cardsDisplayContext.getLabels() %>"
subtitle="Author Action"
title="Beetle"
/>

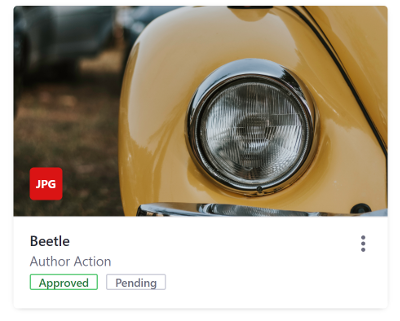

Figure 5: You can include labels in Cards.
Include the selectable attribute to make cards selectable (include a checkbox):
<clay:image-card
actionItems="<%= cardsDisplayContext.getDefaultActionItems() %>"
fileType="JPG"
fileTypeStyle="danger"
href="#1"
imageAlt="thumbnail"
imageSrc="https://images.unsplash.com/photo-1506020647804-b04ee956dc04"
labels="<%= cardsDisplayContext.getLabels() %>"
selectable="<%= true %>"
selected="<%= true %>"
subtitle="Author Action"
title="Beetle"
/>
Figure 6: Cards can be selectable.
File Cards
File Cards display an icon of the file’s type. They represent file types other than image files (i.e. PDF, MP3, DOC, etc.).
<clay:file-card
actionItems="<%= cardsDisplayContext.getDefaultActionItems() %>"
fileType="MP3"
fileTypeStyle="warning"
labels="<%= cardsDisplayContext.getLabels() %>"
labelStylesMap="<%= cardsDisplayContext.getLabelStylesMap() %>"
selectable="<%= true %>"
selected="<%= true %>"
subtitle="Jimi Hendrix"
title="<%= MP3_FILE_TITLE %>"
/>
Figure 7: File Cards display file type icons.
You can optionally use the labelStylesMap attribute to pass a HashMap of
multiple labels, as shown above.
The example below specifies a list icon instead of the default file icon:
<clay:file-card
actionItems="<%= cardsDisplayContext.getDefaultActionItems() %>"
fileType="DOC"
fileTypeStyle="info"
icon="list"
labels="<%= cardsDisplayContext.getLabels() %>"
selectable="<%= true %>"
selected="<%= true %>"
subtitle="Paco de Lucia"
title="<%= DOC_FILE_TITLE %>"
/>
User Cards
User Cards display user profile images or the initials of the user’s name or name+surname.
User Card with initials:
<clay:user-card
actionItems="<%= cardsDisplayContext.getDefaultActionItems() %>"
initials="HS"
name="User Name"
subtitle="Latest Action"
userColor="danger"
/>

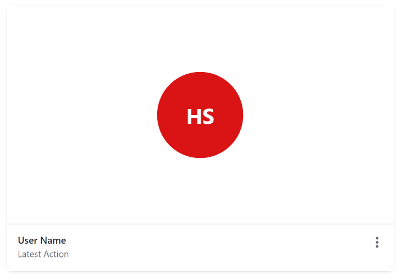

Figure 8: User Cards can display a user's initials.
User Card with profile image:
<clay:user-card
actionItems="<%= cardsDisplayContext.getDefaultActionItems() %>"
disabled="<%= true %>"
imageAlt="thumbnail"
imageSrc="https://images.unsplash.com/photo-1502290822284-9538ef1f1291"
name="User name"
selectable="<%= true %>"
selected="<%= true %>"
subtitle="Latest Action"
/>

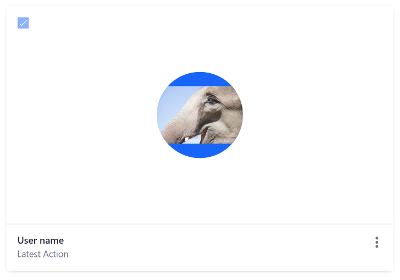

Figure 9: A User Card can also display a profile image.
Horizontal Cards
Horizontal Cards represent folders and can have the same amount of information as other Cards. The key difference is that horizontal Cards let you remove the image portion of the Card, since only the folder icon is required.
<clay:horizontal-card
actionItems="<%= cardsDisplayContext.getDefaultActionItems() %>"
selectable="<%= true %>"
selected="<%= true %>"
title="ReallySuperInsanelyJustIncrediblyLongAndTotallyNotPossibleWordButWeAreReallyTryingToCoverAllOurBasesHereJustInCaseSomeoneIsNutsAsPerUsual"
/>
Figure 10: Horizontal Cards are good for displaying folders.
Now you know how to use Cards in your UI to display information in your apps.
