Service access policies are an additional layer of web service security that define which services or service methods can be invoked remotely. As such, they affect only remote services, not local services. You can apply many of them at once to produce a combined effect. To help you understand how service access policies fit into the big picture, here’s a summary of Liferay DXP’s web service security layers:
IP permission layer: The IP address from which a web service invocation request originates must be white-listed in the portal properties file. Any attempted web service invocation coming from a non-whitelisted IP address automatically fails.
Service access policy layer: The method corresponding to a web service invocation request must be whitelisted by each service access policy that’s in effect. Wildcards can be used to reduce the number of service classes and methods that must be explicitly whitelisted.
Authentication/verification layer (browser-only): If a web service invocation
request comes from a browser, the request must include an authentication token.
This authentication token is the value of the p_auth
URL parameter. The value
of the authentication token is generated by Liferay DXP and is associated with your
browser session. The p_auth
parameter is automatically supplied when you
invoke a Liferay DXP web service via the JSON web services API page or via
JavaScript using Liferay.Service(...)
. If Liferay DXP cannot associate the
caller’s authentication token with a portal user, the web service invocation
request fails.
User permission layer: Properly implemented web services have permission checks. The user invoking a web service must have permission to invoke the service.

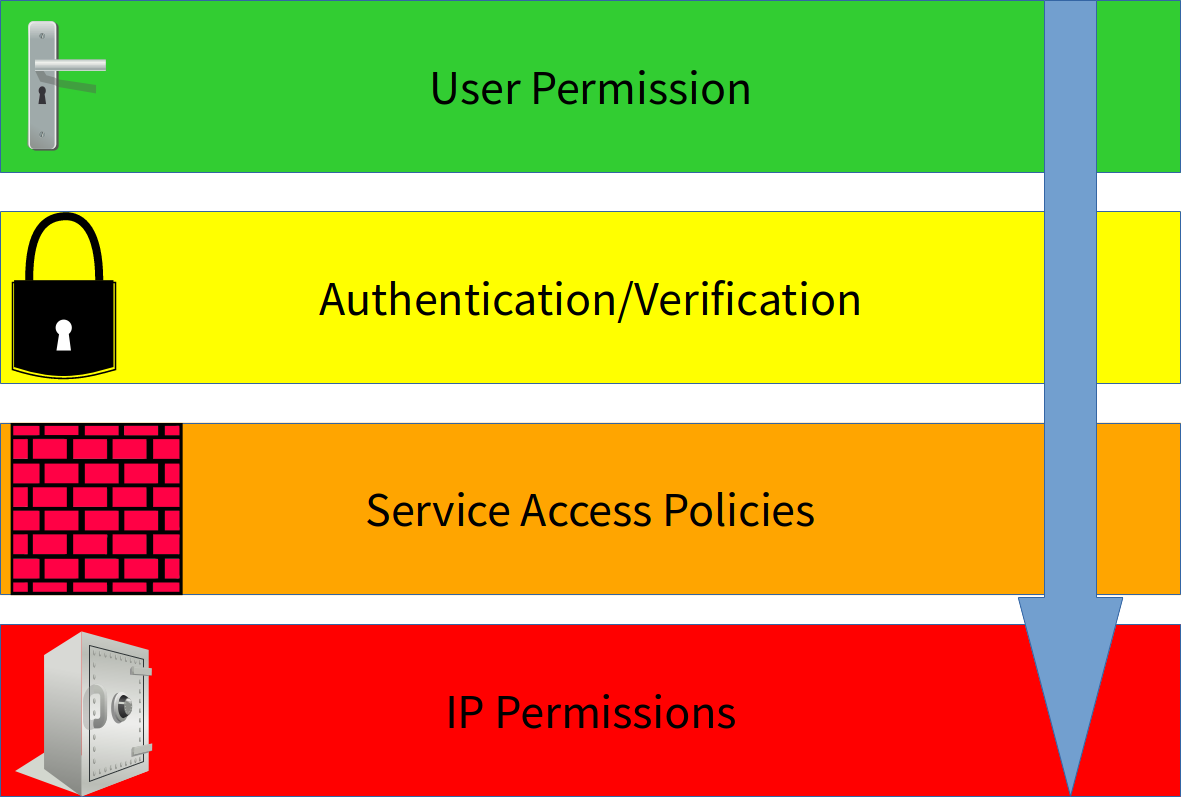

Figure 1: To get to a service, a request must pass through the door lock of user permissions, the padlock of the verification layer, the brick wall of service access policies, and finally the safe of predefined IP permissions.
Note that service access policies respect the permissions system. If a service access policy grants a user access to a remote service, the user must still have the appropriate permissions to invoke that service.
Service access policies are especially useful when remote applications such as mobile devices or Liferay Sync instances must access web services. Administrators can use service access policies to ensure that these devices can only invoke remote services from approved lists that can be modified at runtime.
Managing Service Access Policies
Navigate to the Control Panel and click on Service Access Policy under the Configuration heading. Here, you can see the default service access policies and add new ones. When creating or editing service access policies, keep these points in mind:
-
Service access policy names must be unique per portal instance.
-
Service access policy names can include only these allowed characters:
0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz#:@-./_
-
Service access policy titles can be localized; service access policy names cannot be localized.
-
Allowed service signatures must be entered one per line. Wildcards (
*
) are allowed for both class names and method names. The#
symbol must be used to separate a class name from a method name. For example,com.liferay.portal.kernel.service.UserService
allows any method from the
UserService
class to be invoked.com.liferay.document.library.kernel.service.DLAppService#get*
allows any method from the
DLAppService
that starts withget
to be invoked. Thus,com.liferay.portal.kernel.service.UserService com.liferay.document.library.kernel.service.DLAppService#get*
allows any method from the
UserService
class to be invoked and any method from theDLAppService
whose name starts withget
to be invoked.
There are six service access policies that are enabled by default:
- ASSET_ENTRY_DEFAULT
- CALENDAR_DEFAULT
- SYNC_DEFAULT
- SYNC_TOKEN
- SYSTEM_DEFAULT
- SYSTEM_USER_PASSWORD
ASSET_ENTRY_DEFAULT
allows the view counter for assets to be updated when an
asset is retrieved. CALENDAR_DEFAULT
makes it possible to search public events
in the calendar. The SYSTEM_DEFAULT
policy applies to every request, including
unauthenticated requests. It allows access to country/region services by
JavaScript calls, so users can switch languages on the fly. The
SYSTEM_USER_PASSWORD
policy applies to requests for which
AuthVerifierResult.isPasswordBasedAuthentication
is true
: i.e., whenever
user authentication took place using a password. Its list of allowed method
signatures is *
, meaning that any API can be invoked. Of course, since API
functions include permission checks, this call works only if the user has the
required permission. If you want to completely disallow certain API functions
from being invoked, you can change the SYSTEM_USER_PASSWORD
policy to
something more restrictive than *
.
The SYNC_DEFAULT
policy applies to every Liferay Sync request, including
unauthenticated Sync requests. Its list of allowed method signatures includes
only the com.liferay.sync.service.SyncDLObjectService.getSyncContext
method.
The SYNC_TOKEN
policy applies to Sync requests which are accompanied by an
authentication token. Its list of allowed signatures includes
com.liferay.sync.service.*
, meaning that any API function that’s a
method of a class in this package can be invoked.
SYNC_DEFAULT
and SYSTEM_DEFAULT
, as their names suggest, are default
service access policies. Default service access policies are applied to all
incoming requests, including unauthenticated requests.
You can create new default service access policies:
-
Navigate to the Configuration → Service Access Policy section of the Control Panel.
-
Click Add (
).
-
Flip the switch to enable your policy.
-
If you want the policy applied to unauthenticated requests as well as authenticated requests, flip the switch labeled Default.
-
Give your policy a title.
-
Under Allowed Service Signatures, start typing the fully qualified name of a service class that’s installed. Code completion helps you find the class. For example, if you’re creating a policy for Liferay’s Knowledge Base application, you could enter
com.liferay.knowledge.base.service.KBArticleService
. -
Under Method Name, start typing a service method call. Again, code completion helps you. For Knowledge Base, you could enter
getKBArticle
. -
To specify another service or method, click the plus icon to add another entry.
-
When done, click Save.
Liferay applications can declare their own default policies (the SYNC_DEFAULT
policy is a good example). This policy can then be changed or disabled by
administrators. In this case, the plugin can still verify that the policy exists
so there is no need to redefine or update it.
By default, Liferay’s tunneling servlet uses the SYSTEM_USER_PASSWORD
service
access policy. You can, however, create your own policy for the tunneling
servlet and use the property service.access.policy.name
for the
TunnelingServletAuthVerifier
to specify that your policy should be used
instead.
Service Access Policy Module
Liferay’s service access policy functionality is provided by the Service Access Policy module. This module includes the following important classes:
com.liferay.portal.kernel.security.service.access.policy.ServiceAccessPolicy
: defines the public interface forServiceAccessPolicy
.com.liferay.portal.kernel.security.service.access.policy.ServiceAccessPolicyManager
: defines the public interface for retrieving instances ofServiceAccessPolicy
.com.liferay.portal.kernel.security.service.access.policy.ServiceAccessPolicyManagerUtil
: bridges service access policy functionality to the parts of Liferay’s core that have not yet been modularized.com.liferay.portal.kernel.security.service.access.policy.ServiceAccessPolicyThreadLocal
: makesServiceAccessPolicy
instances active.
Liferay’s Service Access Policy module resides in the
modules/apps/service-access-policy
folder in the source code. When running,
these three bundles provide the service access policy functionality (they’re in
the [Liferay Home]/osgi/modules
folder):
com.liferay.service.access.policy.api.jar
com.liferay.service.access.policy.service.jar
com.liferay.service.access.policy.web.jar
These modules provide the service access policy management UI that’s accessible
from the Control Panel. They also provide the interface and default
implementation for ServiceAccessPolicy
.
To configure the Service Access Policy module, navigate to the Control Panel,
click on System Settings, and find the Service Access Policies module in the
Security section. Click on its name to edit it. Here, you can edit the default
service access policy configuration. You can also force a default policy to be
applied even when no policies are applied by the AuthVerifier
.
There’s also an AuthenticatedAccessControlPolicy
. This policy doesn’t do
anything if a ServiceAccessPolicyManager
implementation is present. If the
service access policy module is disabled, however, the
AuthenticatedAccessControlPolicy
provides a fallback that still requires
authenticated access for web services.
Summary
Great! Now you know service access policies can restrict access to Liferay DXP’s web services. Custom service access policies can be created by portal administrators. They are applied by the portal’s token authenticator, e.g., by OAuth.
