Implementing Asset Categorization and Tagging

At this point, you’ve asset-enabled your entities. In addition to that, you should make sure to implement asset renderers for them. Content authors, however, still can’t specify the tags and categories for these entities in the UI. Don’t fret! Liferay provides a set of JSP tags for showing category and tag inputs in your UI.

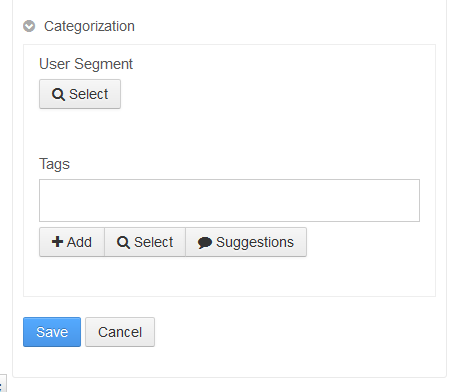

Figure 1: Adding category and tag input options lets authors aggregate and label custom entities.

Figure 1: Adding category and tag input options lets authors aggregate and label custom entities.

Go ahead and get started!

You can use the following tags in the JSPs you provide for adding/editing custom entities. Here’s what the tags look like in a the edit_insult.jsp for a custom Insults portlet that’s used as an example.

<liferay-ui:asset-categories-error />
<liferay-ui:asset-tags-error />
<liferay-ui:panel defaultState="closed" extended="<%= false %>" id="insultsCategorizationPanel" persistState="<%= true %>" title="categorization">
    <aui:fieldset>
        <aui:input name="categories" type="assetCategories" />

        <aui:input name="tags" type="assetTags" />
     </aui:fieldset>
</liferay-ui:panel>

These category and tag aui:input tags generate form controls that let users browse/select a categories for the entity, browse/select tags, and/or create new tags to associate with the entity.

The liferay-ui:asset-categories-error and liferay-ui:asset-tags-error tags show messages for errors occurring during the asset category or tag input process. The liferay-ui:panel tag uses a container that lets users hide or show the category and tag input options.

For styling purposes, give the liferay-ui:panel an arbitrary id value that relates to your custom entity.

Once the tags and categories have been entered, you’ll want to show them along with the content of the asset. Here’s how to display the tags and categories:

<label>Categories</label>
<liferay-ui:asset-categories-summary
    className="<%= insult.getClass().getName() %>"
    classPK="<%= insult.getPrimaryKey() %>"
/>

<label>Tags</label>
<liferay-ui:asset-tags-summary
    className="<%= insult.getClass().getName() %>"
    classPK="<%= insult.getPrimaryKey() %>"
/>

You can also support navigation of tags and categories by specifying a portletURL parameter in the JSP tags. Each tag that uses this parameter becomes a link containing the portletURL and tag or categoryId parameter value. To implement this, you need to implement the look-up functionality in your portlet code. Do this by reading the values of those two parameters and using AssetEntryService to query the database for entries based on the specified tag or category.

Deploy your changes and add/edit a custom entity in your UI. Your form shows the categorization and tag input options in a panel that the user can hide/show.

Great! Now you know how to make category and tag input options available to your portlet’s content authors.
