Publishing and Configuring Workflows

Once a workflow is developed, it must be published to Liferay. After that, there’s even more workflow configuration possbility, such as associating the workflow with a Dynamic Data List, and using Kaleo Forms to run the workflow.

Publishing Workflows to the Server

After you create a new workflow or modify an existing one, you’ll have to publish it onto your Liferay server before your site’s members can use it. Let’s publish the ticket process workflow definition onto your Liferay server.

To publish your ticket process workflow definition:

  1. Right-click the Kaleo Workflows folder listed under your Liferay server in the Servers view.

  2. Select Upload new workflow… to bring up the workspace files browser.

  3. Browse for your workflow definition file and select it for publishing.

Alternatively, you can publish your new workflow XML file by dragging it from your Package Explorer view onto your Liferay server in your Servers view.

If you are not using the Kaleo Designer for Java plugin and you’d like to publish workflow definitions you’ve written in XML, you can do so by uploading them from within Liferay Portal’s workflow configuration screens. For details, see the chapter on Using Workflow in DiscoverPortal.

You probably understand why it’s necessary to publish new workflow definitions onto the Liferay server; it might be less clear why you need to republish existing workflow definitions that you’ve modified. When you save changes to a workflow, they’re not immediately available in your portal; it’s still using the previous version of the workflow. Developer Studio saves the workflow as a draft, so you can work on multiple iterations of the same version until you’re ready to publish your changes. Once you publish, you now have a new version to make changes on top of. For example, you might be working on Version 1 of your workflow definition; as you make changes, you save them in multiple drafts. When you are finished with all of your changes, you publish the workflow triggering creation of a new version (Version 2) of the workflow. The new version is made available on the server immediately for your workflow administrators to associate with asset publications, DDLs, and with Kaleo Forms.

Unlike other Java editors, Developer Studio lets you test your workflow definition as a draft. You can also publish your workflow definition straight to Liferay Portal for quick and easy configuration.

Are you ready for our Kaleo Designer for Java finale? You just have to activate the workflow in your Liferay Portal, then we’ll set up the DDL record and try out our new workflow. Let’s activate!

Using Workflows in Liferay Portal

Let’s put some finishing touches on your workflow and test drive it in Liferay Portal. Before you can use a workflow definition, it must be activated in your Liferay Portal. Navigate to the Control Panel and, under the Configuration heading, select Workflow. Then, in the Definitions tab, click on the Actions button and select Activate.

A workflow definition can be associated with publication of an asset or DDL record. Let’s associate our ticket process workflow definition with a DDL record that lets a developer indicate whether she’ll fix a ticket’s issue. You can find detailed instructions for creating a DDL by visiting the section Defining data types in DiscoverPortal. We’ll demonstrate how easy it is.

Using Dynamic Data Lists with Workflows

Let’s associate our workflow with a Dynamic Data List (DDL) record. To learn more about DDLs, visit Using Web Forms and Dynamic Data Lists in DiscoverPortal.

First we’ll create a data definition that lets the user select a status value.

  1. In Liferay Portal, go to Site AdministrationContentDynamic Data Lists.

  2. Click the Manage Data Definitions link, then Add a new data definition.

  3. Name the data definition Status. Then, in the Fields tab, drag and drop the Select field onto the canvas.

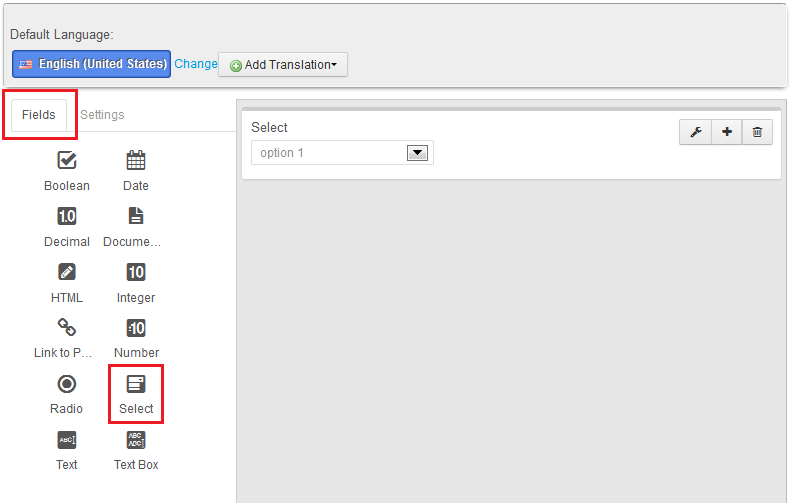

    Figure 1: Creating data definitions for your DDL is a snap with Liferays graphical drag and drop interface.

    Figure 1: Creating data definitions for your DDL is a snap with Liferay's graphical drag and drop interface.

  4. In the Settings tab, double click the Name property to open the property editor–enter status, in lowercase, as the value. Then click Save.

  5. Edit the Options setting; give your status field option values of fix with label “Fix” and not with label “Do not fix”.

  6. Click Save.

Recall the code we inserted for our condition node:

Field field = ddlRecord.getField("status");

String status = GetterUtil.getString(field.getValue());
if (status.contains("not")) {
    returnValue = "No"
else {
    returnValue = "Yes"

In our code, the getField() method ingests the value of our DDL field named “status”. When the script is invoked, if the value for the status field is not, the value No is returned and our workflow transitions to our EndNode state. Otherwise, the workflow transitions to our Developer task node.

After you create the data definition, create a DDL. Make sure you select the ticket process workflow and the Status data definition when creating this DDL. Save the DDL.

Now our DDL is set for use inside our ticket process workflow! Let’s use the Kaleo Forms portlet to test our new workflow definition!

Using Kaleo Forms to Run Workflows

Let’s use the Kaleo Forms portlet to invoke our workflow from Liferay Portal. Deploy the Kaleo Forms portlet to your portal and add it to a page on your site. You can learn how to use Kaleo Forms in the Kaleo Forms section of DiscoverPortal; we’ll demonstrate its use here by using it with our ticket process workflow.

  1. Create a new Process in Kaleo Forms; name it Ticket Process.

  2. Select the status entry definition we created earlier.

  3. Add an Initial Form based on our status data definition.

  4. Select our ticket process workflow.

  5. Leave Workflow Task Forms unassigned for our demonstration.

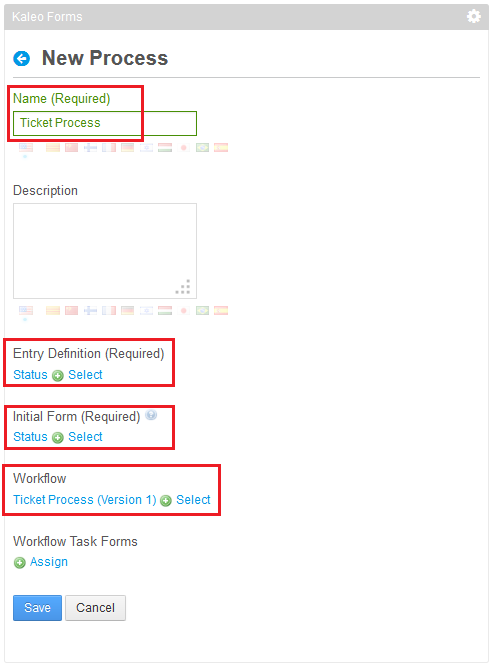

Figure 2: To test the ticket process workflow, create a new Kaleo Forms Processprovide a name, entry definition, and workflow.

Figure 2: To test the ticket process workflow, create a new Kaleo Forms *Process*--provide a name, entry definition, and workflow.

After saving, select the Summary tab in Kaleo Forms, click the Submit New button, and select Ticket Process.

Now you can interact with the DDL and progress throughout the ticket process using Kaleo Forms! Joe Bloggs is assigned the task once the ticket reaches the QA and Pass to QA tasks. Remember to sign in as Joe Bloggs to access the tasks assigned to him. Mr. Bloggs should also receive an email when the Project Management node is activated.

You successfully created a workflow definition and created a workflow process within Liferay Portal! You’re officially a workflow master (you can get your framed certification at the front desk on your way out–tell them we sent you)!

Have you noticed that there’s a lot of depth to Liferay IDE? You can easily come across difficult questions and run into very specific problems, but someone else might have already solved your issue or answered your question. So where would you go to find out? Don’t reinvent the wheel, visit the Liferay IDE Community page! On the Forums page, you can look up resolutions to specific errors and ask questions. Be sure to fully describe any problems you have to ensure you get a working answer. You can even track known issues from the Issue Tracker page.
