The performance, health, and stability of a portal deployment is heavily
dependent upon the portlet modules deployed to it. If one portlet leaks memory
or is extremely slow, your entire portal can crash due to a dreaded
OutOfMemoryError or can slow to a crawl.
Liferay Portal 6.2 introduces a sandboxing feature that enables you to run troublesome portlets in their own container (or “sandbox”), reducing any adverse impact they may have on the health and stability of your portal. The feature is available in Liferay’s Sandbox App. The app lets you create sandboxes to run portlets in separate JVMs, freeing your portal’s JVM from the resource consumption of those portlets. We refer to the portal’s JVM instance as the Master Portal Instance (MPI) and the sandbox JVMs as Slave Portal Instances (SPIs). Since SPIs run on the same host as the MPI, communication between them is very fast. The fact that sandboxed portlets are running in SPIs is transparent to your users. Portal users continue to use these portlets as they normally do.
As a portal administrator, you’ll be pleased to know that the app not only gives you the ability to section off plugins into SPIs, but also gives you the means to revive a SPI. The Liferay Sandbox App comes with a SPI Administration UI that lets you create, start, stop, and restart SPIs. In addition, it lets you configure options to restart SPIs that terminate unexpectedly, automatically.
The sandboxing feature has two limitations. First, only portlet and web plugins can be deployed on an SPI. Second, the portal ignores SPI portlet implementation classes that are not remote-safe. Implementation classes (such as asset renderers and pollers) that register with the portal fall into this category and are ignored by the portal. Therefore, the sooner you test and resolve any performance issues in such SPI portlets, the sooner you can deploy them back onto the Master Portal Instance to leverage such implementation classes in those portlets.
The Liferay Sandbox App is available on the Liferay Marketplace. You can purchase, install, and deploy the app as described in this guide’s chapter on Leveraging the Liferay Marketplace.
Before creating and using sandboxes, we must enable the portal’s resiliency functionality and optimize the database connection settings for your sandboxes.
Configuring the Portal for Sandboxing
The two types of portal properties you must modify for your portal to use
sandboxing are the Portal Resiliency
properties and Database Connection
properties. You can set these in your
You must enable Portal Resiliency by setting the
true. In addition, you can optionally enable the portal to show
special footers in sandboxed portlets. The footers display at the bottom of each
sandboxed portlet, indicating the sandbox that is servicing the request. The
footer helps you verify that a portlet is sandboxed and which sandbox it’s in.
To enable both of these resiliency properties, specify the following entries in
If you hadn’t previously configured your database connection pools using your
portal properties, you must do so in order to use the sandboxing feature. If
you’ve been using JNDI to configure data sources on your app server, please
convert to using Liferay’s built-in data source by specifying it via
properties in your
portal-ext.properties file. Note, if you attempt to create
or start a sandbox while having incorrect JDBC settings, the Sandbox
Administration console displays a warning.

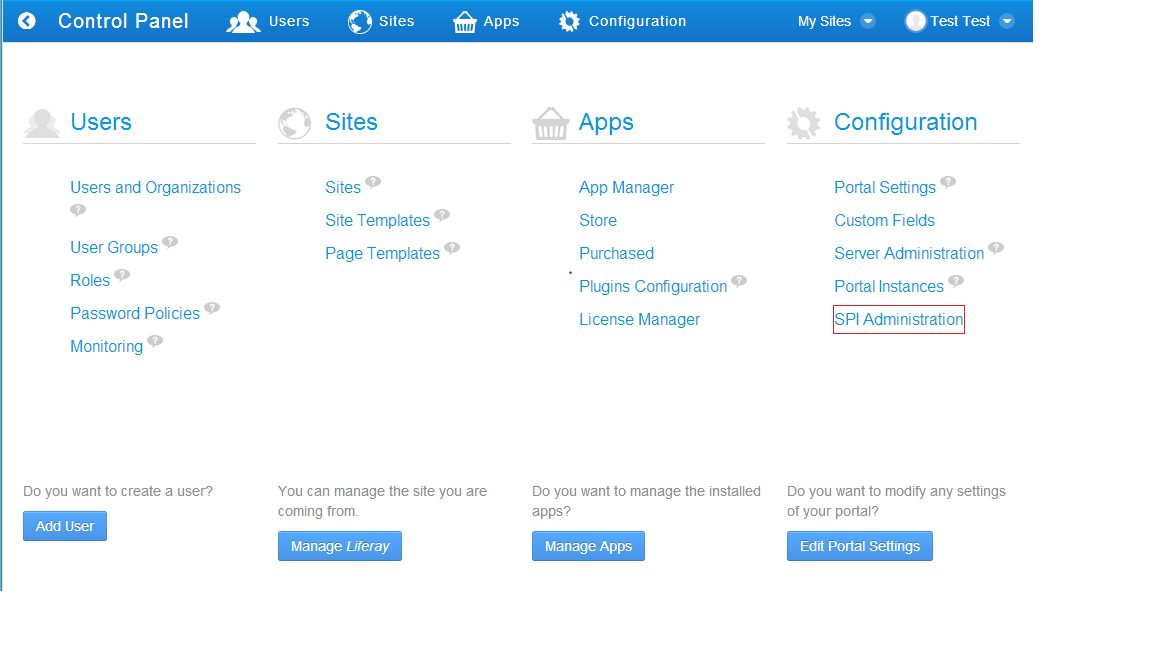

After you’ve configured your portal for sandboxing and restarted it, deploy the sandbox app. Then navigate to the Control Panel to see the SPI Administration link displayed in the Configuration section.
Click the SPI Administration link to start creating SPIs for running new or troublesome portlets.
Creating an SPI

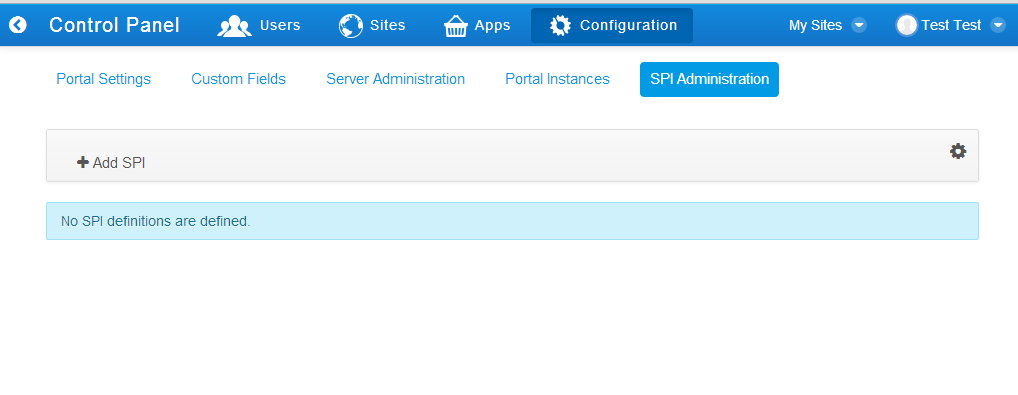

You can create and administer SPIs from the SPI Administration page accessible in the Configuration section of the Control Panel.

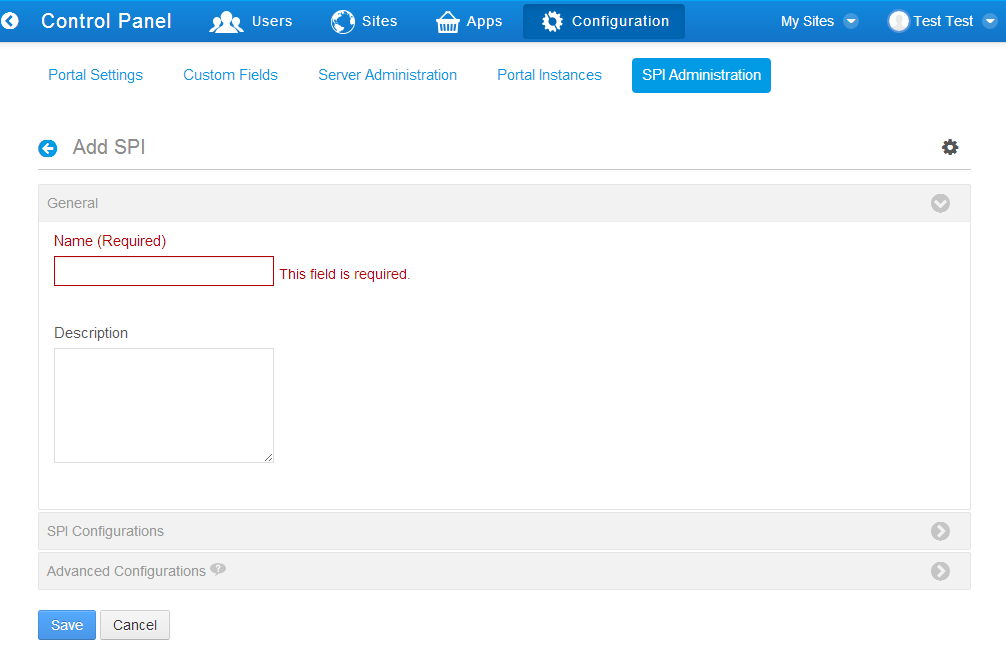

To add a new SPI, simply click on the Add SPI button.
The Add SPI panel divides the SPI’s fields into General, SPI Configurations, and Advanced Configurations sections.
In the General section, you must provide a unique name for the SPI and describe the SPI.
The SPI Configurations contains some of the most important settings for the SPI. It is broken into 4 sections: SPI Runtime, SPI Applications, Java Runtime, and Recovery Options.

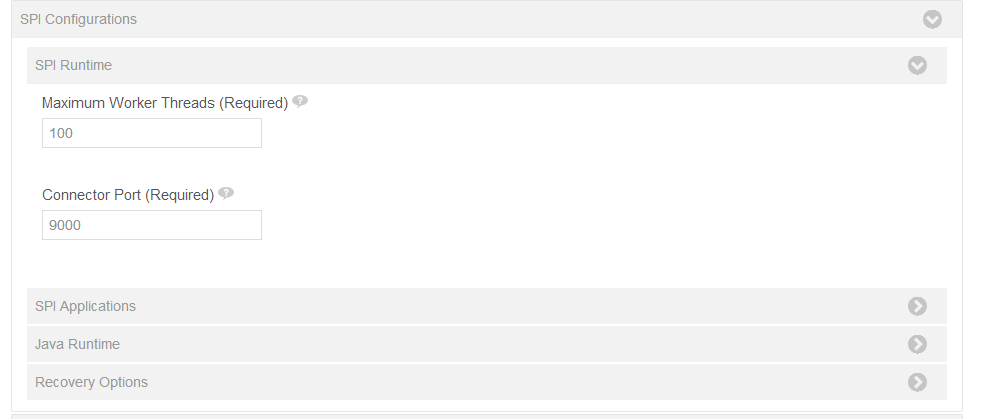

Let’s set the SPI’s runtime options first.
Maximum Worker Threads: Enter the maximum number of worker threads that the
SPI can use to process requests. By default, it is set to
100. You should tune
this value, however, according to the number of threads allocated in the
application server hosting your portal. This parameter functions similarly to
the settings in most JEE application servers.
Connector Port: Enter the port number on which the SPI listens for requests from Liferay Portal. Each SPI runs on an embedded Apache Tomcat server instance. Each of the portal’s SPIs must use a unique port and you must ensure that no other processes are using that port.
Next, we’ll pull those troublesome apps into the SPI.
The SPI Applications panel provides a way to select applications to be hosted in the SPI. All requests that call these applications are processed by the SPI.
The panel lists non-core portlets and web plugins that have been installed on the portal. Since theme, layout template, hook, and Liferay EXT plugins are not supported in the sandbox, they’re excluded from this list. In addition, the following applications are explicitly excluded:
Next, we’ll set the Java runtime resources for the SPI’s JVM.

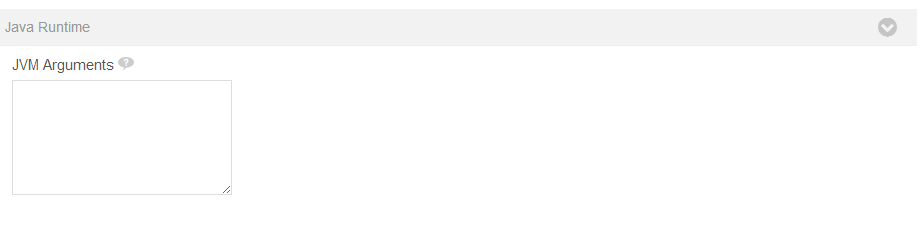

The JVM Arguments panel allows you to specify arguments to be passed to the Java Virtual Machine (JVM) running the SPI. These include memory settings, debugger options, etc. If you do not specify any values, the system automatically uses these values:
Consider the JVM’s performance tuning recommendations when setting these arguments. You can also consult the Liferay Deployment Checklist for guidance on setting the JVM arguments.
In development, you may also choose to add debug settings to the JVM arguments.
In the event that the SPI terminates unexpectedly, you may want to consider automatically restarting it and having the Sandboxing App send notifications to you and other stakeholders.

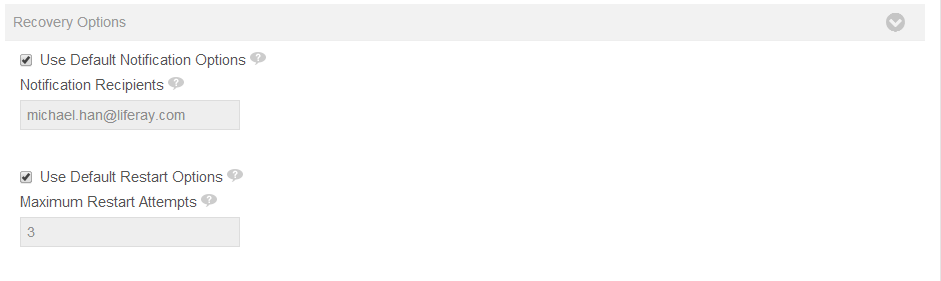

The Sandboxing App lets you configure email notifications for when an SPI crashes and lets you configure for the app to automatically restart the SPI.
Use Default Notification Options: Select this checkbox to use the globally defined notification options. Otherwise the notification options specified in this panel are used.
Notification Recipients: Enter a set of comma-delimited email addresses of people to be notified in the event that the SPI fails. This option is disabled if the Use Default Notification Options checkbox is selected.
Use Default Restart Options: Select this checkbox to use the globally defined restart options. Otherwise the restart options specified in this panel are used.
Maximum Restart Attempts: Enter the maximum number of times to attempt restarting the SPI in the event that the SPI fails. Once Liferay reaches the maximum number of restart attempts for the SPI, it refrains from restarting the SPI. At that point, manual operator intervention is required to restart it. This option is disabled if the Use Default Restart Options checkbox is selected.
The Advanced Configurations section contains a series of optional parameters that should rarely be modified.
Java Executable: Enter the path to your JVM, specifically the path to your
Java executable file (i.e., the
java.exe file). You should generally
not modify this value, assuming your Java executable is in your system’s
SPI Ping Interval: Enter the number of milliseconds to wait between pings that the SPI sends to the portal to ensure the portal is alive. Pinging the portal prevents SPIs from becoming “zombie” processes, in the event that the portal terminates unexpectedly.
SPI Register Timeout: Enter the number of milliseconds allotted for the SPI
to start. The default value is
300000 milliseconds (
300 seconds). This
should be ample time for a SPI to start. However, if you have a large number
of applications in the sandbox, or the server has an insufficient CPU or
insufficient memory resources, you may need to increase the amount of time.
SPI Shutdown Timeout: Enter the maximum amount of time (in milliseconds) that the SPI should need to gracefully shutdown. As with the SPI Register Timeout, this value may need to be increased on slower or overloaded machines.
You may also choose to allocate certain embedded Liferay functions (e.g., blogs, bookmarks, etc.) to an SPI. This is generally not recommended, but is made possible by the Sandboxing App. The SPI Core Applications panel lets you drag apps onto the SPI in the same way you can with the SPI Applications panel.
Now that you know how to add a SPI and configure it properly, let’s learn how to operate the SPI.
Starting, Stopping, and Modifying an SPI

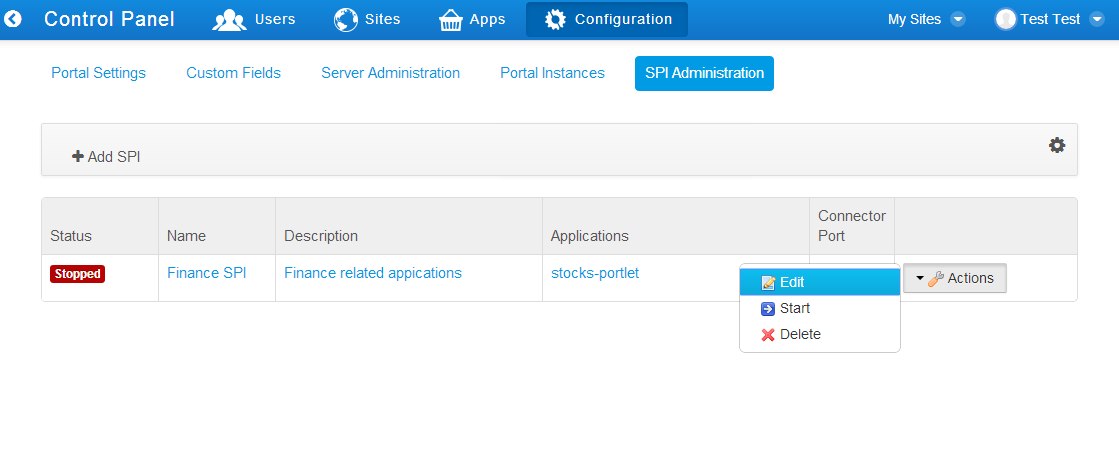

The Portal automatically starts SPIs on startup. However, when you first add a new SPI, you must start it manually.
Once successfully started, you can stop or restart a SPI. You can’t, however, delete an SPI that is running. You must first stop the SPI.

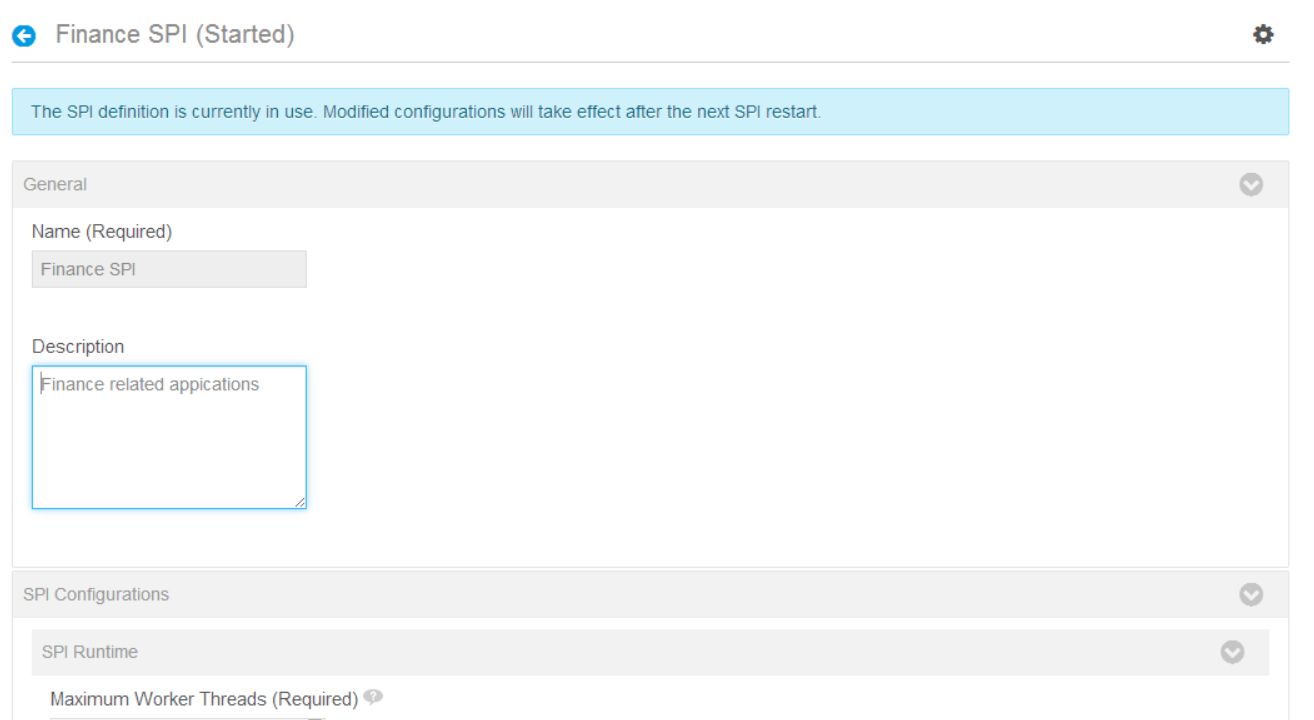

You can edit an SPI’s configuration too. Configuration changes made to a running SPI take effect after it’s restarted.
As you can see, operating SPIs is straightforward and easy to do.
If you have multiple SPIs, you may want to use global settings to configure the default options for them. Let’s consider how to configure global settings for your SPIs next.
Configure Global Settings

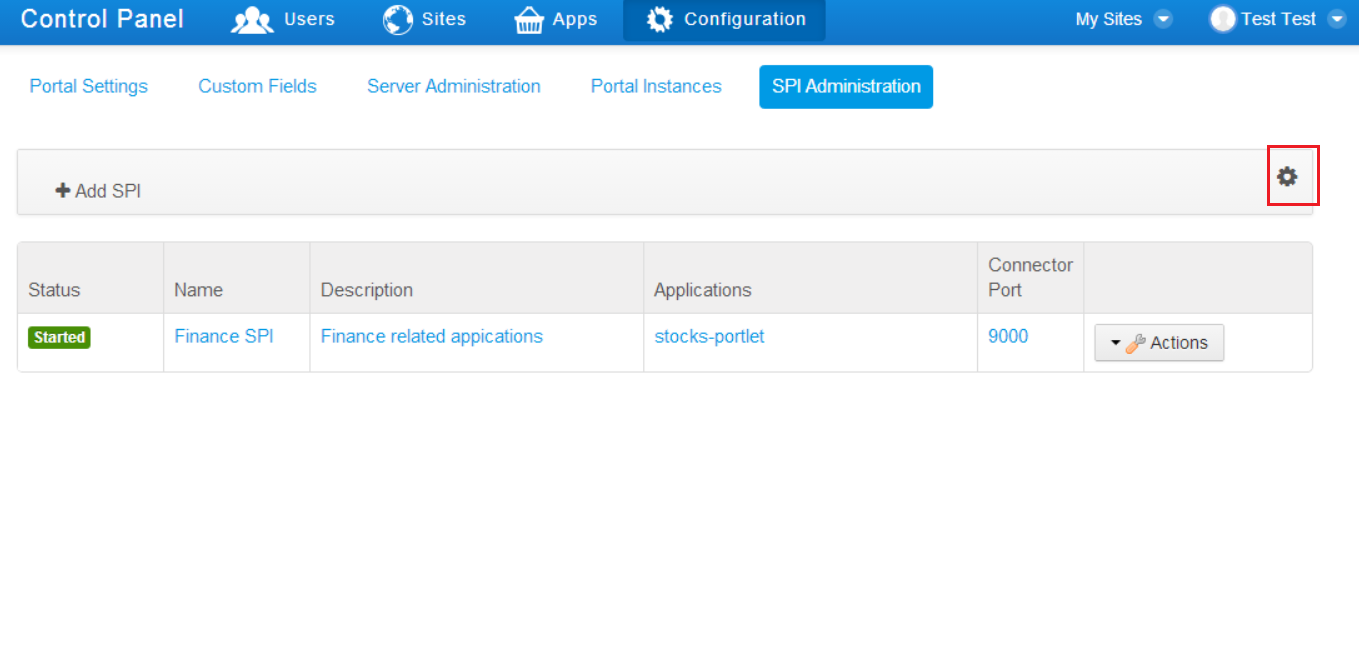

The SPI Administration console allows you to configure a series of global settings. You can access them by clicking on the configuration gear icon as shown in the figure below.
Once you’ve opened the configuration panel, the SPI Administration console enables you to configure global notification and set restart options for your SPIs.
Note that option values explicitly configured in an SPI take precedence over the global settings with respect to that SPI.
Let’s look at the global notification options first.

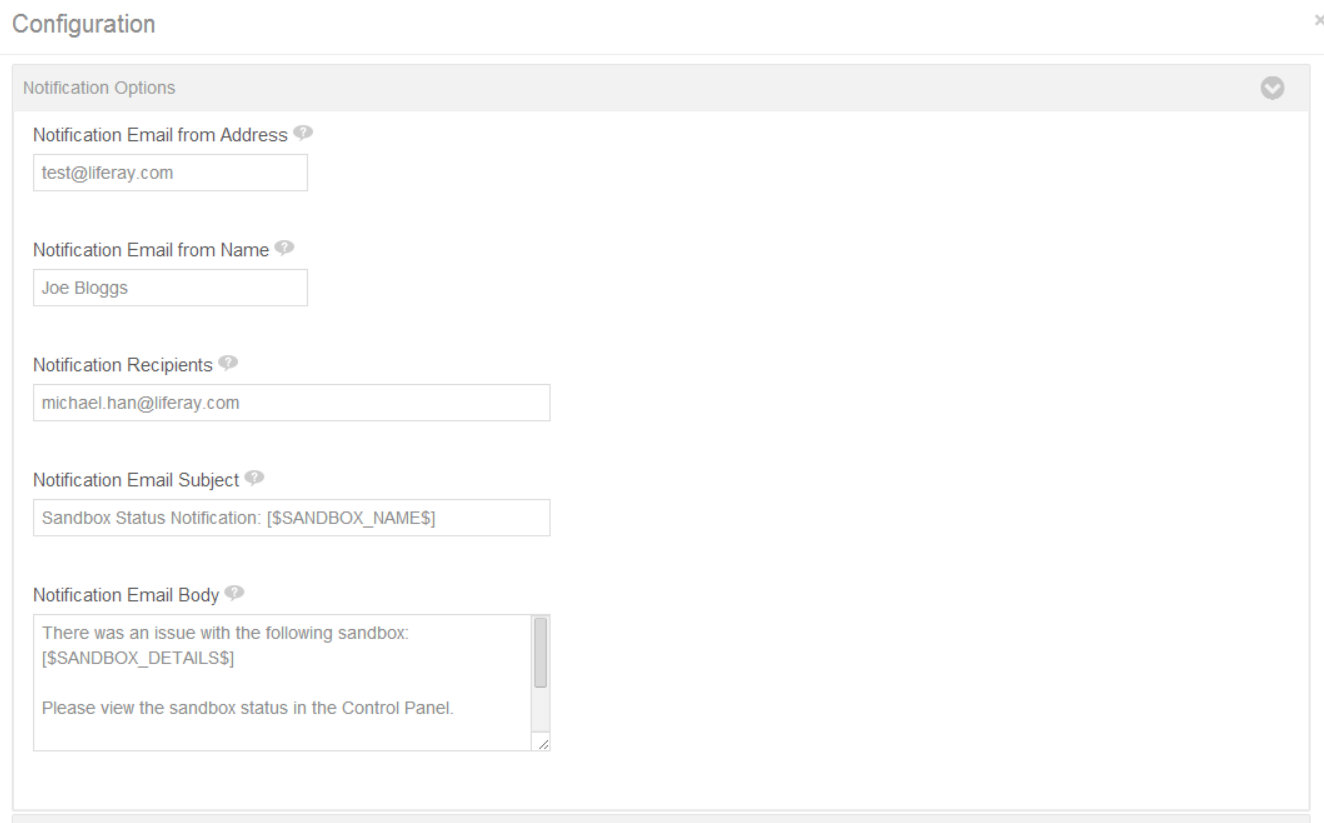

The notification options allow you to configure both the notfication email content and specify the recipients of the notification email. These values are used by all defined SPIs.
Notification Email From Address: Enter a default origin email address to use for notification emails sent from the SPIs.
Notification Email From Name: Enter a default name to use for the sender of the notification emails.
Notification Recipients: Enter a default comma-delimited list of email addresses to receive the notification emails.
Notification Email Subject: Enter a subject template for the notification emails.
Notification Email Body: Enter a body template for the notification emails.
That’s simple enough. Let’s take a look at the restart options too.

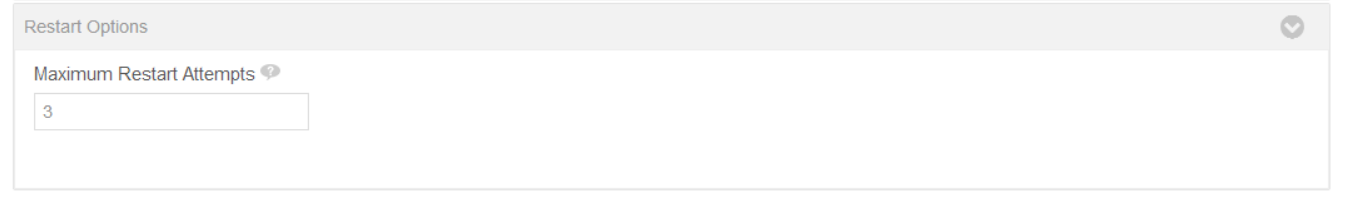

The restart options section allows you to configure how many times each SPI is restarted in the event that it terminates unexpectedly. In the example below, all SPIs are restarted 3 times before requiring administrator intervention to restart them.
Let’s recap what Liferay’s Sandboxing App does for you. It lets you isolate portlets and web plugins that are known troublemakers or that you are simply just unsure about. You put them in their own sandbox JVM (or SPI), so they can still be used in your portal but are kept out of your portal’s JVM. As an administrator, you can group plugins into SPIs and configure each SPI’s runtime, notification, and recovery options. In addition, you can configure global default settings for your portal’s SPIs. With the Sandboxing App, you can ensure your portal’s resiliency while leveraging all the portlets (even leaky ones) that your users require.
Liferay Portal can serve portlets that are installed on the system, or it can serve portlets installed on another portal server. This is called Web Services for Remote Portlets. Have you ever wondered how to use WSRP in Liferay? We’ll cover this next!
