Leveraging Social Portlets, Activities Tracking, and User Connections

Liferay has many portlets available for social interaction and collaboration. Some of these portlets are designed to help you work together as a team, while others are designed to foster social interactions between team members at your organization.

Some of the social networking portlets should be used on the public pages of your portal, while others should be used as part of a user’s personal site. As you might expect, the portlets intended for personal page use are more focused on simple social interactions while the ones which can be placed on any site help teams interact and improve productivity.

Unless otherwise noted, these portlets are provided with minimal configuration options. Most of them have at least two configuration options–the option to change permissions for the portlet view and sharing options for connecting the portlet to other web sites. Some of the social networking portlets provide additional options for customizing feed lengths or display styles. Additional styling changes can be made through custom CSS.

Using the Core Liferay Social Portlets

Out-of-the box, Liferay provides four social portlets:

  • Activities
  • User Statistics
  • Group Statistics
  • Requests

The Activities portlet displays information about user activity in the site to which the portlet was added. User activities tracked by the Activities portlet include updates to the Documents and Media library, blog posts, message boards posts, wiki pages, and bookmarks. The Activities portlet also tracks information about web content but only displays this information if the logged-in user is a site administrator. The Activities portlet functions similarly to Facebook’s news feed: it provides a summary of recent site activity. The Activities portlet could be used on a site’s public or private pages to show what site members have been up to or it could be used on the public or private pages of a user’s personal site. When added to a personal site, the Activities portlet just shows the activities of a single user.

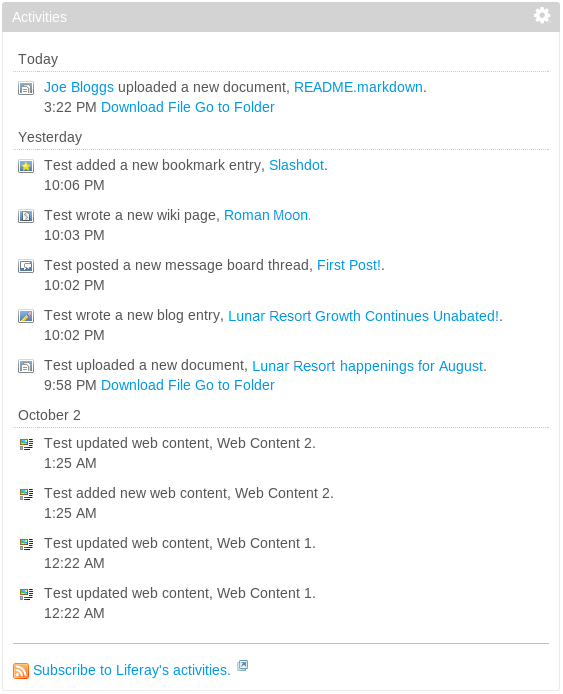

Figure 10.2: The Activities portlet displays information about asset-related user activity in the current site. It only displays information about web content if the current user is a site administrator.

Figure 10.2: The Activities portlet displays information about asset-related user activity in the current site. It only displays information about web content if the current user is a site administrator.

Note that the Activities portlet provides links to the assets described in its activities feed. However, the links to the assets won’t work unless there’s a way to display the assets on the page. For example, suppose that the user Joe Bloggs uploaded a document called Lunar Resort happenings for August to a site. If the Activities portlet has been placed on a page of that site, it will display a feed entry with a link to the Lunar Resort happenings for August document. However, the link won’t work unless there’s a Documents and Media portlet or a Documents and Media Display portlet for the document to be displayed in. Remember add the appropriate portlets to the page of the Activities portlet if you want the Activities portlet’s links to work.

The User Statistics and Group Statistics portlets integrate with Liferay’s social activity system which tracks user activity and assigns points for various actions. They’re useful for displaying various kinds of statistical information such as the most active users, the average number of activities per day and the highest periods of activity. The exact information that’s displayed is configurable and you can add counters to track many different kinds of information such as the number of comments on users’ assets, number of subscriptions to users’ assets, number of blog entries by the user, number of blog entry updates by the user, number of message board posts, etc. Although these are core Liferay portlets, they’re only useful if Liferay’s social activity system has been enabled for your site. We’ll discuss the User Statistics and Group Statistics in more detail once after we’ve discussed Liferay’s social activity system.

Lastly, the Requests portlet can be added to pages of users’ personal sites to allow users to respond to social requests such as friend requests. The Requests portlet is usually added to the private page set of a personal site since only one user, the owner of the personal site, is allowed to use it. The Requests portlet is a core Liferay portlet but is only useful if there’s some way to send social requests, such as friend requests. This functionality can be added by installing the Social Networking app from Liferay Marketplace. It’s also possible to develop and deploy custom portlets that implement Liferay’s social API to enable social requests. Please refer to the Liferay Developer’s Guide or the Javadocs for information about Liferay’s social API.

Installing the Social Networking Portlets

Social Activity can be enabled on a per-site basis in Liferay Portal. The Activities, User Statistics, and Group Statistics portlet can be used out-of-the box. Liferay provides additional social networking functionality in the form of the Social Networking app that’s available from Liferay Marketplace. The Social Networking app provides a number of social portlets that allow you do anything from building an intranet to improve your team’s ability to collaborate to building a public social networking site to rival Facebook or Linked-In!

The Social Networking app provides the following portlets:

  • Friends
  • Friends’ Activities
  • Wall
  • Map
  • Members
  • Members’ Activities
  • Meetups
  • Summary

If these social networking portlets aren’t enough to satisfy your needs, make sure to check out Liferay Social Office which is also available as an app on Liferay Marketplace. Social Office provides additional portlets and functionality including contacts, microblogs, events, tasks, private messaging, site templates, and a custom theme.

You can manage the plugins in your portal from the Control Panel. If you’re logged in as an administrator, go to the Control Panel and click on App Manager in the Apps section. From here, you can administer all your plugins. For now, we’ll deal with the Social Networking app. Under the Apps heading, click Store to navigate to Liferay Marketplace. Install and download the Social Networking portlet to your portal instance.

Now that we have our social plugins ready to go, let’s learn how to use them!

Using Social Networking on Public Pages

There are several social portlets that are designed for use on public portal pages. The goal of these is to use social connections to help a group work together more closely. These include the Members, Meetups, Summary, and Activities portlets.

Figure 10.3: The Members portlet displays all the members of a particular site.

Figure 10.3: The *Members* portlet displays all the members of a particular site.

The Members portlet is a simple list of all the current site’s members. The only configuration options you have are permissions, which are the same for every portlet. For example, you might change the permissions so only members of the current site can view the portlet.

Figure 10.4: Meetups are organized in the two tabs All Meetups and My Meetups.

Figure 10.4: Meetups are organized in the two tabs *All Meetups* and *My Meetups*.

The Meetups portlet is a tool for creating casual meetings for users of your portal. Anyone can create a “meetup” and give it a title, description, date/time, maximum number of attendees, price and provide an image. Any meetups that are created are displayed in the portlet for anyone to view. Users can register for the meetup, which lets the organizer keep track of who’s coming.

The options for creating a meetup are essentially the same as those for creating a calendar event and the Meetups portlet shares some functionality with the Calendar. For more information on the Calendar portlet and configuring events, see chapter 8.

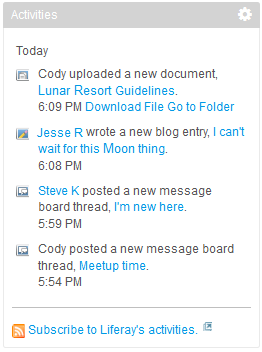

Figure 10.5: All of your site members activities are listed with brief descriptions and time stamps.

Figure 10.5: All of your site members' activities are listed with brief descriptions and time stamps.

The Activities portlet comes in two varieties: the standard Activities portlet and the Members’ Activities portlet. The basic function of the portlets are the same–they both display a feed of what users are doing on the portal. The difference is that Activities displays what’s going on across the entire portal, while Members’ Activities displays only what members of the current site have been doing. There’s also a Friend’s Actvities portlet that’s intended for use on users’ personal pages. In the Configuration dialog box of any variety of the Activities portlet, you can use the Maximum Activities to Display dropdown menu to set a limit on how many activities can be displayed at once in the portlet window.

Figure 10.6: The Map portlet can be placed on a single users page to display one location or on the main site page to display all users location.

Figure 10.6: The Map portlet can be placed on a single user's page to display one location or on the main site page to display all users' location.

The Map portlet allows you to view the locations of site members, both locally and internationally. Only members of the site to which the Map portlet has been added are displayed. In order to configure the Map portlet, you need to install the IP Geocoder portlet (available from Liferay Marketplace) and configure it to access MaxMind GeoIP or GeoLite on your server. For more information on configuring geolocation services, visit the MaxMind support page at http://www.maxmind.com/app/installation?city=1. Once you’ve installed the Geocoder portlet and configured it to access MaxMind GeoIP or GeoLite, you’ll need a key from Google to access Google’s Maps API so your Map portlet will work. Visit https://developers.google.com/maps/documentation/javascript/tutorial#api_key to learn how to obtain a valid Google API key. To configure the Map portlet using the GeoLite City database, use the following steps:

  1. Install the Social Networking plugin, if you haven’t already done so.

  2. Install the IP Geocoder portlet. (Both the Social Networking and IP Geocoder apps can be installed from Martketplace.)

  3. Shut down your application server.

  4. Download the Geo Lite City database from http://www.maxmind.com/download/geoip/database/GeoLiteCity.dat.gz.

  5. Unzip the .dat file to your desired storage location.

  6. Create a portlet-ext.properties file in the /{ROOT}/webapps/ip-geocoder-portlet/WEB-INF/classes/ directory of your Liferay installation.

  7. Add the property maxmind.database.file={GeoLite City .dat file path} to this file.

    Note: Make sure your the file’s directory path is separated by \\. For example: E:\\ce\\bundles\\GeoLiteCity.dat.

  8. Create a portlet-ext.properties file in the /{ROOT}/webapps/social-networking-portlet/WEB-INF/classes/ directory of your Liferay installation.

  9. Add the property map.google.maps.api.key={Your API Key} to this file. If you haven’t done so already, you’ll need to generate a Google Maps API Key.

  10. Restart your application server.

  11. Enjoy the Maps portlet!

Next, let’s look at the social networking portlets designed for use on personal pages.

Using Social Networking on Personal Pages

In addition to the portlets available for general use, there are a handful that can only be used on personal pages. These include the Summary, Wall, Friends, and Friends’ Activities portlets. These portlets can be used to create profile pages similar to Facebook’s or Google+’s.

Figure 10.7: You can get creative with Social Networking portlets and make a custom designed profile page.

Figure 10.7: You can get creative with Social Networking portlets and make a custom designed profile page.

The Summary portlet provides a quick overview of a user’s profile. When posted in a user’s personal site, it displays the user’s name, profile picture and job title. Users can add additional personal information by clicking on Edit in the portlet and filling in information in the About Me section. This portlet is essential to any social implementation on Liferay, because it has the Friend Request button. This enables users to initiate social relationships. Note that this portlet simplifies a much more powerful underlying social networking API that defines many different kinds of relationships, including friends. Your developers can take advantage of this API to create powerful social applications. For more information on this, see Liferay in Action (Manning Publications) or the Liferay Developer’s Guide.

The Wall portlet provides a place for users to leave messages on other users’ profiles. The messages can only be plain text as no formatting or HTML is supported. Once a post is added to their wall, users have the ability delete it or respond to it with a quick link to post on the original poster’s wall.

The Friends portlet shows a list of all the user’s friends with links to their profiles. The Friends’ Activities portlet displays information about a user’s friends’ activities on the portal.

Now that we’ve discussed the functions of the suite of social networking portlets that ships with Liferay, let’s put them all together and make a social web site.

Liferay’s Social Tools in Action

To get started with Liferay’s social features, let’s set up the public pages of our users’ personal sites to include social apps. Because of Liferay’s flexible page layout options, we have a large number of options for how to set the pages up. For simplicity’s sake, we’ll make something that’s fairly similar to the original Facebook layout.

Setting up Users’ Personal Pages

Before we start adding portlets to pages, we should configure Liferay so that everyone (or some subset of everyone) has the same social features. We have two ways to do this with advantages and disadvantages to each.

User Groups: Placing users into a group enables you to create a user group site for them. The pages and portlets defined by the user group site are copied to members’ personal sites. With the user group site, you can control whether users can modify pages and you can push changes out to users in the future. Once the site template is assigned to a user group, you can set the Default User Associations to have all users be the member of a particular group in Portal Settings in the Control Panel. The advantage of this is that it can be managed entirely through the GUI and it’s easy to configure. If you base your user group’s site on a template, you can use the Enable propagation of changes from the site template option to manage all user pages simply by changing the template. This is the recommended way to manage personal pages across the portal. For more information on user group sites, see chapter 15.

Portal Properties Configuration: The legacy way to do this is with the configuration file. You can specify a default layout and portlets for personal pages in your portal-ext.properties file. Note that this method applies changes to all users’ personal sites. However, it does not provide as much maintainability or as many customization options as does using user group sites. User group sites allow you to choose what’s modifiable by the user. For more information on the portal-ext.properties method, see Default User Private Layouts and Default User Public Layouts in chapter 20.

Because it’s the recommended method, we’ll use the user group method to create the layouts. As an administrator, go to the Control Panel and select Site Templates from under the Sites section. Click Add and fill out the form. We’ll call our new site template Social Layout. Click Save.

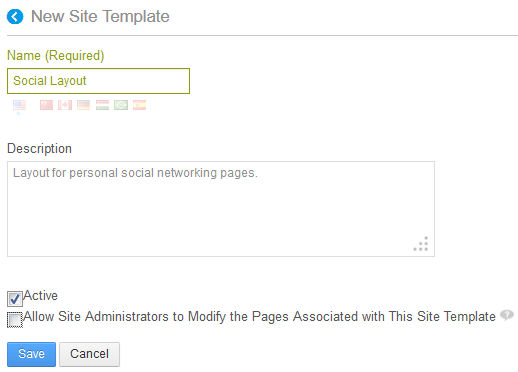

Figure 10.8: You can give your site template a custom name and description and also specify several configuration settings..

Figure 10.8: You can give your site template a custom name and description and also specify several configuration settings..

Once you’ve created the template, choose Actions → View Pages. Let’s change the name of the page from the default to My Profile and add some portlets to the page. Back in the Control Panel, select User Groups from the Users section. Once there, click Add and name the group Social Users. When creating a user group, you have the option to set a user group site; use this option and select the Social Layout template for your Public Pages.

Now go to Portal Settings and select Users from the submenu. From the Users page, go to the Default User Associations tab and enter Social Users in the User Groups section. Now all users on the portal get a Social Profile page. Now the question is, how do we encourage users to visit each others fancy new profile pages?

Connecting Users Through Collaboration

There are many ways that social networks connect users. These generally involve some kind of mutual interest or experience. On a site like Facebook, you can connect with people from school, from work or from other personal connections. On a music based networking site like Last.fm, you can connect with people who have similar tastes to yours. With Liferay’s social networking collaboration is the key to connection.

Using our example site of lunar-resort.com, we can take a closer look at ways users can be connected through hierarchies and ways they can connect to each other. We’ll look at a handful of portlets, both those designed specifically for connecting users and those that can create connections as a side-effect of just getting work done.

The Site Members Directory portlet can provide a simple way for users to connect. If we have a site dedicated to Lunar Resort astronauts, we can place a Site Members Directory portlet on that site, listing all the users that have joined that site. Users can connect by sending requests to other users on that list. This isn’t the worst way to get users connected but it probably won’t be very effective. Why not? Well, other than sharing some very basic common interests, we haven’t really had any interactions.

The Activities portlet provides a similar but more effective means of connection. Because it shows a list of what other users are doing, this portlet helps users discover who is among the most active across the site or the portal, and thus who might be a good connection.

Probably the most effective way users can connect is by interacting with other users. Every portlet in the Collaboration category provides information on who is contributing, regardless of how. You can see who is creating a thread in a message board, editing a wiki article, blogging or creating a calendar event. Users can use these to connect based on content–if I find your blog interesting, or if you answer my question on the message board, we can use that as a point to connect as friends to further our interactions. This way, instead of our connection being forced or arbitrary, we’ve connected based on the fact that we’ve directly interacted and share a common interest–just like people did before they had the internet.

“Friend” is only the default social relationship as implemented by Liferay’s social portlets. You can design things so that users are automatically connected through Site and Organization membership. And there are many other relationship types beyond Friend: your developers can take advantage of these by using Liferay’s social API. This is covered in Liferay in Action and the Liferay Developer’s Guide. Now that you’ve got all these social applications running on your system, you might wonder: how can I measure social interaction? How do I identify the best contributors to my site? Liferay has an answer: social activity measurements.
