Login Screenlet for Android

Requirements

• Android SDK 4.1 (API Level 16) or above
• Liferay Portal 6.2 CE/EE, Liferay CE Portal 7.0/7.1, Liferay DXP

Compatibility

• Android SDK 4.1 (API Level 16) or above

Xamarin Requirements

• Visual Studio 7.2
• Mono .NET framework 5.4.1.6

Features

Login Screenlet lets you authenticate portal users in your Android app. The following types of authentication are supported:

• Basic: uses user login and password according to HTTP Basic Access Authentication specification. Depending on the authentication method used by your Liferay instance, you need to provide the user’s email address, screen name, or user ID. You also need to provide the user’s password.

• OAuth: implements OAuth 2.

• Cookie: uses a cookie to log in. This lets you access documents and images in the portal’s document library without the guest view permission in the portal. The other authentication types require this permission to access such files.

For instructions on configuring the Screenlet to use these authentication types, see the below Portal Configuration and Screenlet Attributes sections.

When a user successfully authenticates, their user attributes are retrieved for use in the app. You can use the SessionContext class to get the current user’s attributes.

Note that user credentials and attributes can be stored in an app’s data store (see the saveCredentials attribute). Android’s SharedPreferences is currently the only data store implemented. However, new and more secure data stores will be added in the future. Stored user credentials can be used to automatically log the user in to subsequent sessions. To do this, you can use the method SessionContext.loadStoredCredentials().

JSON Services Used

Screenlets in Liferay Screens call the portal’s JSON web services. This Screenlet calls the following services and methods.

Service	Method	Notes
UserService	getUserByEmailAddress	Basic login
UserService	getUserByScreenName	Basic login
UserService	getUserById	Basic login
UserService	getCurrentUser	Cookie and OAuth login

Module

• Auth

Views

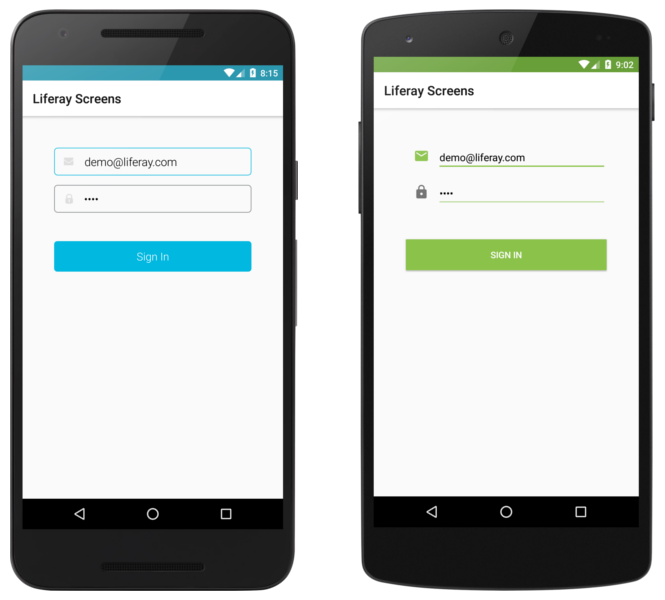

• Default
• Material

For instructions on using these Views, see the layoutId attribute in the Attributes section below.

Portal Configuration

Basic Authentication

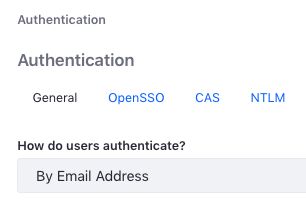

Before using Login Screenlet, you should make sure your portal is configured with the authentication option you want to use. You can choose email address, screen name, or user ID. You can set this in the Control Panel by selecting Configuration → Instance Settings, and then selecting the Authentication section. The authentication options are in the How do users authenticate? selector menu. For more information, see the User Guide’s authentication section.

OAuth Authentication

For instructions on using OAuth with Login Screenlet, see the tutorial on using OAuth 2 with Liferay Screens.

Offline

This Screenlet doesn’t support offline mode. It requires network connectivity. If you need to log in users automatically, even when there’s no network connection, you can use the credentialsStorage attribute together with the SessionContext.loadStoredCredentials method.

Required Attributes

• None

Attributes

Attribute	Data type	Explanation
layoutId	@layout	The ID of the View’s layout. You can set this attribute to @layout/login_default (Default View) or @layout/login_material (Material View). To use the Material View, you must first install the Material View Set. Click here for instructions on installing and using Views and View Sets, including the Material View Set.
companyId	number	The ID of the portal instance to authenticate to. If you don’t set this attribute or set it to 0, the Screenlet uses the companyId setting in LiferayServerContext.
loginMode	enum	The Screenlet’s authentication type. You can set this attribute to basic, cookie, oauth2Redirect, or oauth2UsernameAndPassword. If you don’t set this attribute, the Screenlet defaults to basic authentication.
basicAuthMethod	string	Specifies the authentication option to use with basic or cookie authentication. You can set this attribute to email, screenName or userId. This must match the server’s authentication option. If you don’t set this attribute, and don’t set the loginMode attribute to one of the OAuth values or cookie, the Screenlet defaults to basic authentication with the email option.
oauth2Redirect	string	The URL that the mobile browser will redirect the user to after successful login. You must configure this in the portal’s OAuth 2 Admin portlet, and associate the URL with the Android app.
oauth2ClientId	string	The ID of the OAuth 2 application in the portal. You can find this value in the portal’s OAuth 2 Admin portlet.
oauth2ClientSecret	string	The client secret of the OAuth 2 application in the portal. You can find this value in the portal’s OAuth 2 Admin portlet.
oauth2Scopes	string	The portal permissions to request. You can define a set of permissions associated with an OAuth 2 application in the portal’s OAuth 2 Admin portlet. Use this attribute to request a subset of those permissions. Separate multiple scopes with a space (e.g., "scope1 scope2 scope3").
credentialsStorage	enum	Sets the mode for storing user credentials. The possible values are none, auto, and shared_preferences. If set to shared_preferences, the user credentials and attributes are stored using Android’s SharedPreferences class. If set to none, user credentials and attributes aren’t saved at all. If set to auto, the best of the available storage modes is used. Currently, this is equivalent to shared_preferences. The default value is none.
shouldHandleCookieExpiration	bool	Whether to refresh the cookie automatically when using cookie login. When set to true (the default value), the cookie refreshes as it’s about to expire.
cookieExpirationTime	int	How long the cookie lasts, in seconds. This value depends on your portal instance’s configuration. The default value is 900.
authenticator	Authenticator	An instance of a class that implements the Authenticator interface. The Challenge-Response Authentication section below discusses this further.

Listener

The Login Screenlet delegates some events to an object that implements the LoginListener interface. This interface let you implement the following methods:

• onLoginSuccess(User user): Called when login successfully completes. The user parameter contains a set of the logged in user’s attributes. The supported keys are the same as those in the portal’s User entity.

• onLoginFailure(Exception e): Called when an error occurs in the process.

Challenge-Response Authentication

To support challenge-response authentication when using a cookie to log in to the portal, Login Screenlet has an authenticator attribute. As mentioned in the above Attributes table, this attribute’s value is a class that implements the Authenticator interface.

Here’s an example of such a class. It sends a basic authorization in response to an authentication challenge:

public class BasicAuthAutenticator extends BasicAuthentication implements Authenticator {

    public BasicAuthAutenticator(String username, String password) {
        super(username, password);
    }

    @Override
    public Request authenticate(Proxy proxy, Response response) throws IOException {
        String credential = Credentials.basic(username, password);
        return response.request().newBuilder().header(Headers.AUTHORIZATION, credential).build();
    }

    @Override
    public Request authenticateProxy(Proxy proxy, Response response) throws IOException {
        return null;
    }
}
