Using OAuth 2 in the iOS Mobile SDK

You can use OAuth 2 to authenticate using the following OAuth 2 grant types:

• Authorization Code (PKCE for native apps): Redirects users to a page in their mobile browser where they enter their credentials. Following login, the browser redirects users back to the mobile app. User credentials can’t be compromised via the app because it never accesses them—it uses a token that can be easily revoked. This is also useful if users don’t want to enter their credentials in the app. For example, users may not want to enter their Twitter credentials directly in a 3rd-party Twitter app, preferring instead to authenticate via Twitter’s official site. Note that the site you redirect to for authentication must have OAuth 2 implemented.

• Resource Owner Password: Users authenticate by entering their credentials directly in the app.

• Client Credentials: Authenticates without requiring user interaction. This is useful when the app needs to access its own resources, not those of a specific user.

This tutorial shows you how to use these grant types with the Mobile SDK. Note that before getting started, you may want to see Liferay DXP’s OAuth 2.0 documentation for instructions on registering an OAuth 2.0 application in the portal.

Authorization Code (PKCE)

To authenticate via the Authorization Code grant type, you must call the following LROAuth2SignIn method:

LROAuth2SignIn.signIn(withRedirectURL: URL, session: LRSession, clientId: String,
    scopes: [String], callback: (LRSession?, Error?) -> Void) -> LROAuth2AuthorizationFlow

Here are descriptions of this method’s parameters:

• withRedirectURL: The URL that the user is redirected to after successful login in the mobile browser. You must configure this URL in the portal via the OAuth 2 Admin portlet, and associate the URL with the iOS app.
• session: The session that you want to authenticate. Its server property must be set.
• clientId: The ID of the portal’s OAuth 2 application that you want to use. To find this value, navigate to that application in the portal’s OAuth 2 Admin portlet.
• scopes: The portal permissions to request. You can define a set of permissions associated with an OAuth 2 application in the portal’s OAuth 2 Admin portlet. Use this property to request a subset of those permissions.
• callback: A function called with the authentication’s result. If authentication succeeds, you receive a non-null session containing the authentication; otherwise you receive an error.

This LROAuth2SignIn.signIn method returns an LROAuth2AuthorizationFlow object that represents an ongoing authentication request. You must save this as an AppDelegate property and then call the LROAuth2AuthorizationFlow method resumeAuthorizationFlowWithURL in the application(_:open:options:) method.

Here’s an example of this workflow:

1. Configure the redirect URI in the portal via the OAuth2 Administration portlet. In the portal, navigate to Control Panel → Configuration → OAuth2 Administration and select or create the OAuth 2 application you want to use. Then enter the redirect URI in the Callback URIs field. The redirect URI in this example is my-app://my-app:



   Figure 1: Enter the redirect URL in the portal's OAuth 2 application you want to use.

2. In your iOS app, register your redirect URL via the Info tab in your project settings. For instructions on this, see the section Register Your URL Scheme in Apple’s documentation on using custom URLs.

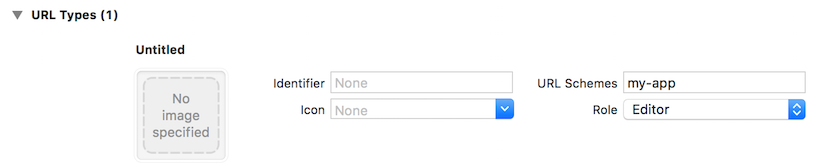

   Figure 2: Register the redirect URL in your iOS app.

3. In your AppDelegate, create a LROAuth2AuthorizationFlow property. You’ll set this property later when you call the LROAuth2SignIn.signIn method:

   var authorizationFlow: LROAuth2AuthorizationFlow?


4. In the view controller in which you’ll call LROAuth2SignIn.signIn, define the callback that runs with the authentication’s result. This callback can perform any action you need. In this example, if the authentication succeeds the callback prints a success message and calls a sample method that tests the session’s user credentials; otherwise it prints an error message:

   let oauth2Callback: (LRSession?, Error?) -> Void = { session, error in
       if let session = session {
           print("Login successful")
           testCredentials(session: session)
       }
       else {
           print(error!)
       }
   }


5. In the same view controller, call the LROAuth2SignIn.signIn method with the above parameters. Set the resulting LROAuth2AuthorizationFlow to the AppDelegate property you created in step 3. This example does this in a loginWithRedirect() method:

   func loginWithRedirect() {
       let session = LRSession(server: "http://my-server.com")
       let redirectUrl = URL(string: "my-app://my-app")!
       let clientIdRedirect = "54321"

       let authorizationFlow = LROAuth2SignIn.signIn(withRedirectURL: redirectUrl,
           session: session, clientId: clientIdRedirect, scopes: [], callback: oauth2Callback)

       (UIApplication.shared.delegate as! AppDelegate).authorizationFlow = authorizationFlow
   }


6. In your AppDelegate’s application(_:open:options:) method, call the LROAuth2AuthorizationFlow method resumeAuthorizationFlow with the URL. For more information on the application(_:open:options:) method, see the section Handle Incoming URLs in Apple’s documentation on using custom URLs:

   @UIApplicationMain
   class AppDelegate: UIResponder, UIApplicationDelegate {

       ...

       var authorizationFlow: LROAuth2AuthorizationFlow?

       func application(_ app: UIApplication, open url: URL,
           options: [UIApplicationOpenURLOptionsKey : Any] = [:]) -> Bool {

           if let authorizationFlow = authorizationFlow {
               return authorizationFlow.resumeAuthorizationFlow(with: url)
           }
       }

       ...

   }


Resource Owner Password

Authenticating via the Resource Owner Password grant type is similar to authenticating via the PKCE grant type, except you don’t need a redirect URL. You instead handle the user’s credentials directly in your iOS app via a slightly different LROAuth2SignIn.signIn method:

LROAuth2SignIn.signIn(withUsername: String, password: String, session: LRSession, clientId: String,
    clientSecret: String, scopes: [String], callback: (LRSession?, Error?) -> Void) -> LRSession?

Compared to the LROAuth2SignIn.signIn method used for the PKCE grant type, this one requires the user’s credentials instead of a redirect URL. It also requires the OAuth 2 application’s client secret from the portal.

Here are descriptions of this method’s parameters:

• withUsername: The user’s username.
• password: The user’s password.
• session: The session that you want to authenticate. Its server property must be set.
• clientId: The ID of the portal’s OAuth 2 application that you want to use. To find this value, navigate to that application in the portal’s OAuth 2 Admin portlet.
• clientSecret: The client secret of the same OAuth 2 application in the portal.
• scopes: The portal permissions to request. You can define a set of permissions associated with an OAuth 2 application in the portal’s OAuth 2 Admin portlet. Use this property to request a subset of those permissions.
• callback: A function called with the authentication’s result. If authentication succeeds, you receive a non-null session containing the authentication; otherwise you receive an error.

Note: You can call the LROAuth2SignIn.signIn method without a callback by passing nil as the callback argument. This causes the request to execute synchronously. If you provide a callback, the request is executed asynchronously in another thread and the callback receives the response.

Follow these steps to call the LROAuth2SignIn.signIn method for the Resource Owner Password grant type:

1. If you want to provide a callback, define it in the view controller in which you’ll call LROAuth2SignIn.signIn. This callback can perform any action you need. In this example, if the authentication succeeds the callback prints a success message and calls a sample method that tests the session’s user credentials; otherwise it prints an error message:

   let oauth2Callback: (LRSession?, Error?) -> Void = { session, error in
       if let session = session {
           print("Login successful")
           testCredentials(session: session)
       }
       else {
           print(error!)
       }
   }


2. In the same view controller, call the LROAuth2SignIn.signIn method with the above parameters. This example does this in a loginWithUsernameAndPassword() method:

   func loginWithUsernameAndPassword() {
       if password.isEmpty {
           fatalError("you have to enter the password")
       }

       let session = LRSession(server: "http://my-server.com")
       let clientId = "12345"
       let clientSecret = "12345"

       _ = try? LROAuth2SignIn.signIn(withUsername: "[e-mail]", password: password,
                   session: session, clientId: clientId, clientSecret: clientSecret, scopes: [],
                   callback: oauth2Callback)
   }


Client Credentials

The OAuth 2 Client Credentials grant type authenticates without requiring user interaction. This is useful when the app needs to access its own resources, not those of a specific user.

Warning: The Client Credentials grant type poses a security risk to the portal. To authenticate without user credentials, the mobile app must contain the OAuth 2 application’s client ID and client secret. Anyone who can access those values via the mobile app can also authenticate without user credentials.

To authenticate with the Client Credentials grant type, you must call the LROAuth2SignIn.signIn method that lacks arguments for user credentials or redirect URLs:

LROAuth2SignIn.clientCredentialsSignIn(with: LRSession, clientId: String,
    clientSecret: String, scopes: [String], callback: (LRSession?, Error?) -> Void)

Here are descriptions of this method’s parameters:

• with: The session that you want to authenticate. Its server property must be set.
• clientId: The ID of the portal’s OAuth 2 application that you want to use. To find this value, navigate to that application in the portal’s OAuth 2 Admin portlet.
• clientSecret: The client secret of the same OAuth 2 application in the portal.
• scopes: The portal permissions to request. You can define a set of permissions associated with an OAuth 2 application in the portal’s OAuth 2 Admin portlet. Use this property to request a subset of those permissions.
• callback: A function called with the authentication’s result. If authentication succeeds, you receive a non-null session containing the authentication; otherwise you receive an error.

Note: You can call the LROAuth2SignIn.signIn method without a callback by passing nil as the callback argument. This causes the request to execute synchronously. If you provide a callback, the request is executed asynchronously in another thread and the callback receives the response.

Follow these steps to call the LROAuth2SignIn.signIn method for the Client Credentials grant type:

1. If you want to provide a callback, define it in the view controller in which you’ll call LROAuth2SignIn.signIn. This callback can perform any action you need. In this example, if the authentication succeeds the callback prints a success message and calls a sample method that tests the session’s user credentials; otherwise it prints an error message:

   let oauth2Callback: (LRSession?, Error?) -> Void = { session, error in
       if let session = session {
           print("Login successful")
           testCredentials(session: session)
       }
       else {
           print(error!)
       }
   }


2. In the same view controller, call the LROAuth2SignIn.signIn method with the above parameters. This example does this in a loginWithClientCredentials() method:

   func loginWithClientCredentials() {

       let session = LRSession(server: "http://my-server.com")
       let clientId = "12345"
       let clientSecret = "12345"

       _ = try? LROAuth2SignIn.clientCredentialsSignIn(with: session, clientId: clientId,
                   clientSecret: clientSecret, scopes: [], callback: oauth2Callback)
   }
