Advanced performance monitoring tools like Dynatrace’s provide detailed performance information about your Liferay DXP servers and instances. Dynatrace’s web-based dashboards display real time system information on memory usage, garbage collection, CPU levels, and heap dumps. Each dashboard is its own detailed report. You can view live information on Liferay DXP server performance metrics down to the individual user.
Using Dynatrace’s dashboards with Liferay DXP requires these things:
- Dynatrace client which contains the user interface (UI)
- Dynatrace license
- Dynatrace server
- installed JVM agents
Finally, sign up for a Dynatrace account to get Dynatrace support.
Dashboards
Dynatrace contains displays ongoing transactions and processes. Because the entire Liferay DXP stack can be analyzed, there are dashboards for each component:
- web server
- browser
- application server
- database
Some of the images below are from a single instance (not clustered) of one application server (Apache Tomcat 8.0.32) connected to a MySQL 5.7 server. Installations differ but the default dashboards are the same.

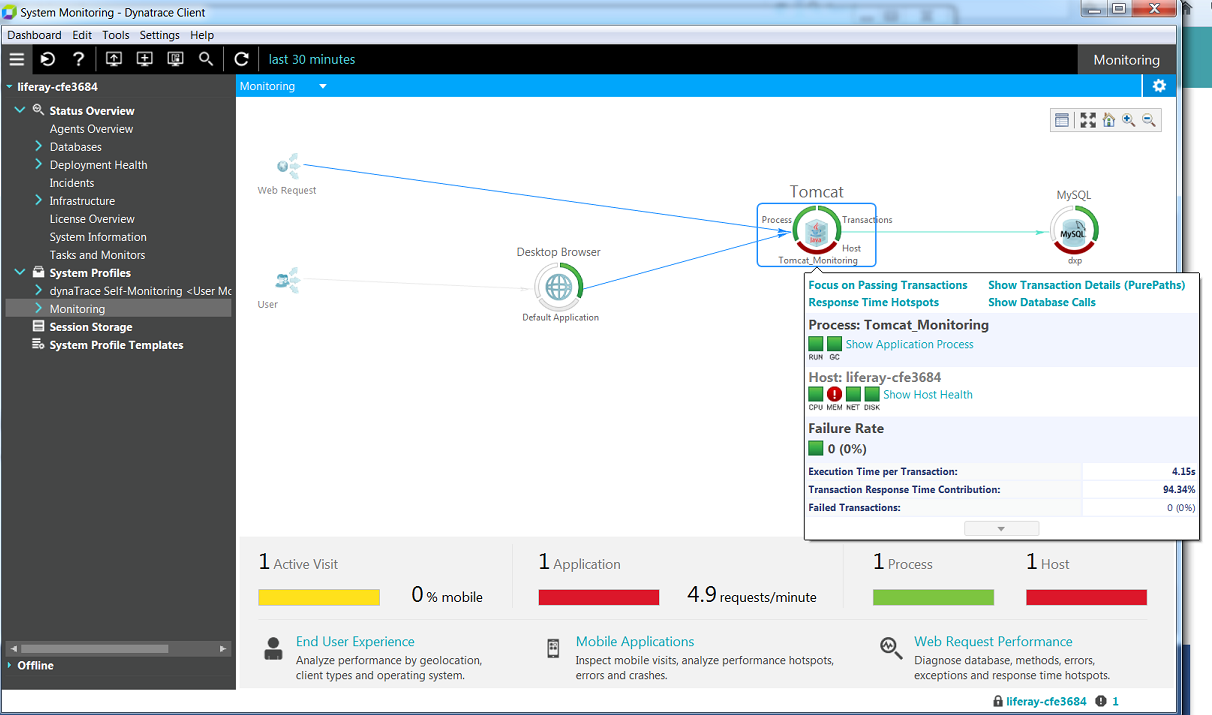

Figure 1: The top level interface lets you select a component to analyze.
Select the app server (e.g., Tomcat).
This dashboard shows the app server’s internal state. During a load test, the graphs are much more interesting. You get a breakdown of CPU usage, memory, and more.

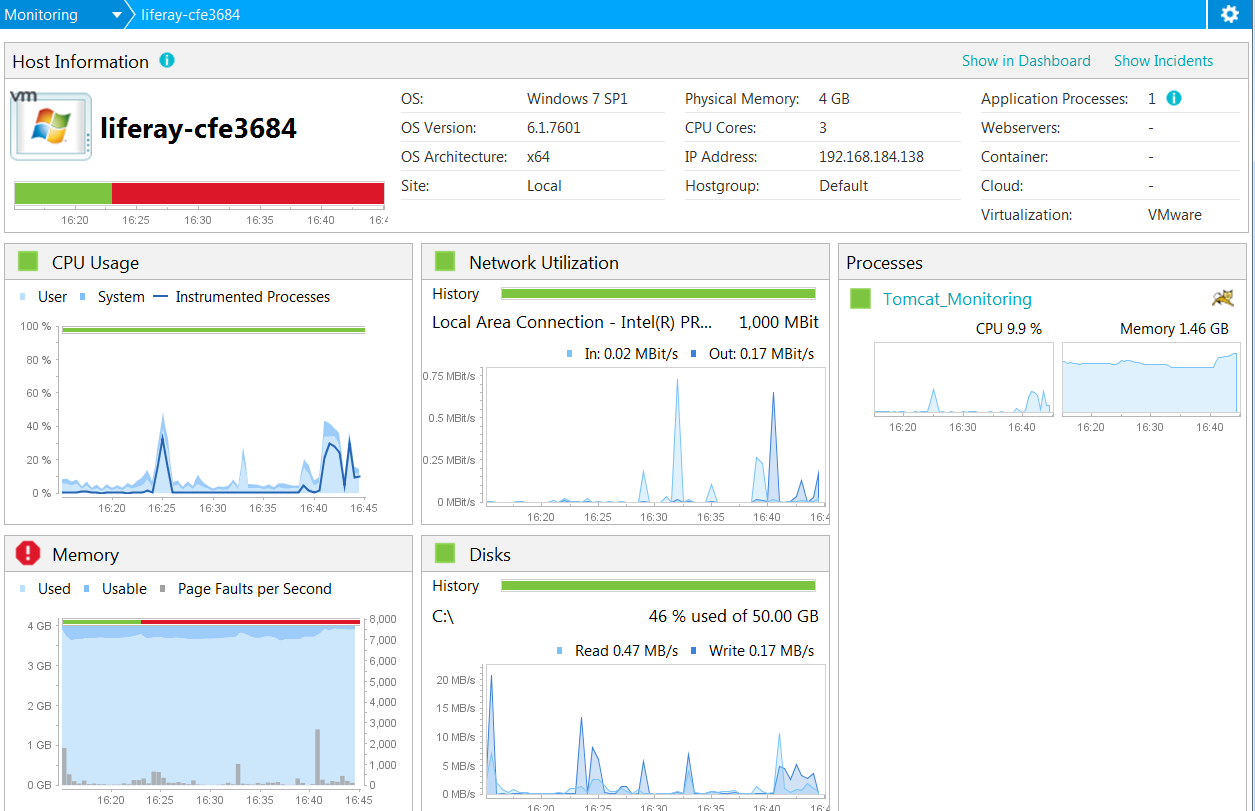

Figure 2: Monitoring the application server during a load gives you valuable information on your system's performance.
The root level shows performance metrics from other parts of the environment. For example, the database component (e.g., MySQL) shows database transactions: you can view this without installing an agent. Deploying a separate database agent is optional because the Dynatrace Collector contains database management functionality out of the box (see Database Monitoring.
Figure 3: You can view live database transactions.
One available default dashboard tracks user experience; Dynatrace can monitor user activity on a web browser or mobile app. Here are the categories for each visit:
- Satisfied
- Tolerating
- Frustrated
A satisfied visit is one in which 1) no action failed; and 2) more than 50% of all actions were satisfied.
A frustrated visit is one in which 1) the last action failed (the web site does not work); and 2) the user’s last action was frustrated (e.g., the web site was too slow). See How Does UEM Work? for more information.

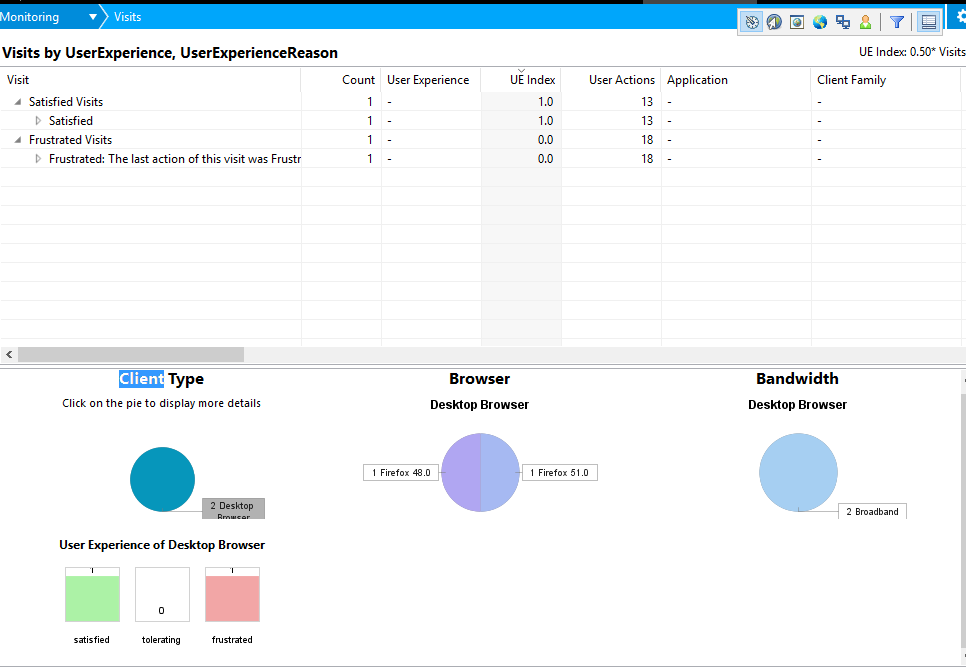

Figure 4: Browser metrics help you find client-side performance problems.
You can import custom dashboards you’ve created (e.g., in XML format):
-
Click the Dashboard menu → Open.
-
Browse for and select your custom dashboard.
-
Click Open Dashboard.
But there’s more: a custom dashboard created for Liferay DXP.
Liferay DXP FastPack
The Dynatrace FastPack for Liferay provides a pre-configured Dynatrace profile custom-tailored for Liferay DXP environments. It contains sensors, a template system profile with measures and business transactions, and dashboards for Liferay DXP. If you’re using UEM, you also get conversion and visitor tagging.
The Liferay DXP FastPack is available for download on the Dynatrace site. These dashboards go beyond dashboards Dynatrace includes out-of-the-box.
The FastPack is distributed as a .dtp
file. To install the FastPack, follow
these steps:
-
In the Dynatrace Client, click Tools → Manage Plugins.
-
Click Install Plugin….
-
Browse to and select the
.dtp
file. -
Click OK in the Import Resource Pack confirmation window.
-
Click OK to close the Configure Plugins window.
-
Liferay now appears in the Systems Profile left control panel.
-
Disable any other profile so that the Liferay profile is the only active profile.
Dynatrace Client Configuration
Java JDK 1.8 (or its equivalent) is a prerequisite to running both Dynatrace Client and Liferay DXP. Make sure to allocate enough CPU cores in the JVM as well as for running Liferay DXP. Install the Fastpack plugin after configuring the Client.
-
Install the Dynatrace environment. Follow the steps from the Dynatrace Installation Step 1. The installation files are available for Windows, Unix, and Linux systems.
Windows users, download and install the full
.msi
file (approx. 770MB).- Select Immediately activate the Dynatrace .NET agent.
- Select Immediately activate the Dynatrace IIS agent.
- Make sure to start the Dynatrace Server, Collector, and Client
Linux users, the installation files are packaged as an executable JAR. Download the full JAR file. Run the command
java -jar dynatrace-full-linux-x86-64.jar
in the JAR’s folder. -
Start the Dynatrace instance and deploy the Dynatrace trial license (see below).
-
Request the Dynatrace license key; the key is available either through your web credentials or from a link in the welcome email. Place the file in a suitable location. When the client starts for the first time and prompts for the license, navigate to and select the file.
-
Once the license has been successfully imported, the Dynatrace Client prompts for a server restart. Restart the server.
-
-
After the server restarts, verify that the following services have started:
- Dynatrace Server
- Dynatrace Front-End
- Dynatrace Collector
You can do this by checking to see if the processes are running:
# ps -A | grep dt
You should see output like this:
3954 ?00:00:43 dtcollector 5924 ?00:01:54 dtserver 5949 ?00:00:42 dtfrontendserver
Use
netstat
to make sure the client is listening on the proper ports:# netstat -an | grep 021
You should see output like this:
tcp 0 0 :::2021 :::* LISTEN (port for dynaTrace client connections) tcp 0 0 :::8021 :::* LISTEN (the dynaTrace server's web interface) # netstat -an | grep 99
You should see output like this:
tcp 0 0 :::6699 :::* LISTEN (port for dynaTrace collector connections) tcp 0 0 :::9998 :::* LISTEN (port for dynaTrace agent connections)
Congratulations! You installed the Dynatrace Server and Collector!
JVM Agent Configuration
Deploy a JVM agent on each Liferay DXP server. The agent sits on top of existing infrastructure (in this example, Apache Tomcat).
-
Download the agent
.jar
for your operating system. Use this agent only if the Dynatrace Client and the Liferay DXP bundle on the app server are connected remotely. You must install the agent on the same machine as each Liferay DXP instance. -
The location of the agent must be set in each application server. If the client and Liferay DXP are on the same machine, you don’t have to install anything else (the agent is already included in the full installation), but you do have to configure it. This configuration is only for testing and demonstration purposes; the Dynatrace Client’s JVM requirements can be different from Liferay DXP’s. Either way, edit the
setenv.bat|sh
file.In Unix/Linux
setenv.sh
:-agentpath:${location of the dtagent .dll}"=name=Tomcat_Monitoring,server=liferay-cfe3684:9998
In Windows
setenv.bat
:-agentpath:"C:\Program Files\Dynatrace\Dynatrace 6.5\agent\lib64\dtagent.dll"=name=Tomcat_Monitoring,server=liferay-cfe3684:9998
For other application servers, place the property in the file where other JVM settings are set (for example,
standalone.conf.bat
for JBoss EAP). -
Connect the Liferay DXP with the JVM agent to the Dynatrace instance. Refer to Dynatrace’s documentation for further details. Select the Application Servers tab on the right. The example below uses Apache Tomcat but according to Dynatrace, the steps are virtually the same for JBoss and WebSphere.
- Select Client → Monitoring.
- Select Java.
- Select App Server.
- Select Apache 5+.
- Select Java 5 or later (64 bit).
- Select whether the Tomcat bundle is local or remote.
- As long as the connector is on, it should find the Liferay DXP instance. For testing purposes, the Liferay DXP bundle is local.
-
After you import the fast pack, you must do these things:
- Select the Liferay profile as the only active system profile in Dynatrace.
- Restart the application server.
Your Liferay agent starts sending data into the newly imported profile.
Performance Testing
Systems administrators must often perform load testing as part of an overall tuning process. The Dynatrace Client is a great tool to monitor and then analyze the performance of your system. For demonstration purposes, JMeter was used to create a simple load test, and the Dynatrace Client captured the results illustrated below.

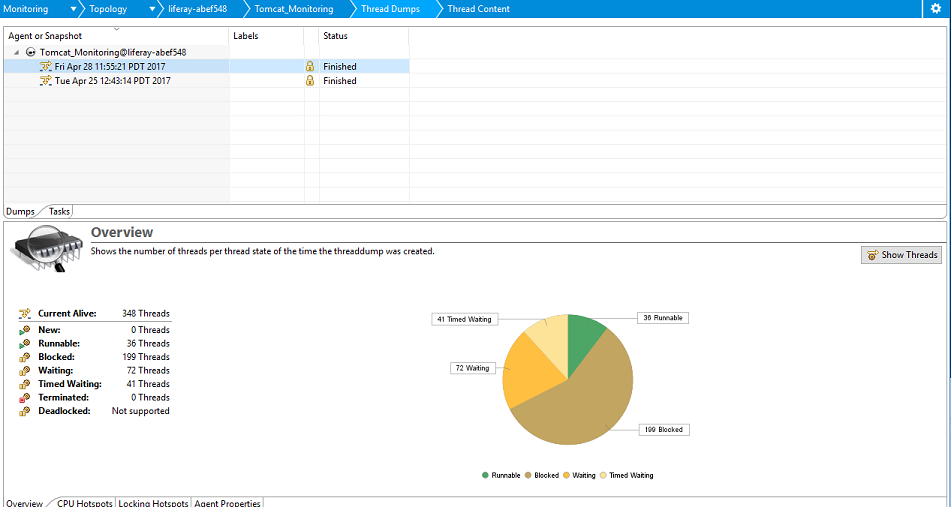

Figure 5: Dynatrace Client can generate thread dump reports.
The Dynatrace Client shows garbage collection over time as the number of threads increase during the load test.

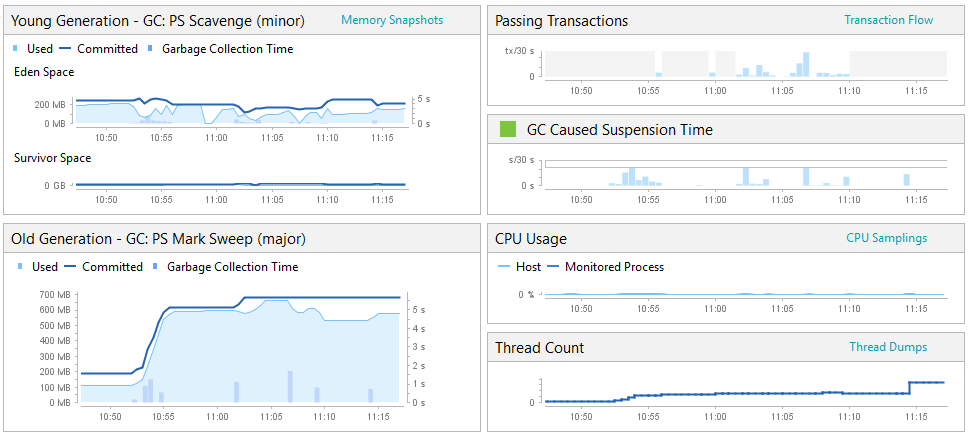

Figure 6: Garbage collection statistics at the beginning of the load test.
Here, the Dynatrace Client continues to display in real time the high consumption during the load test.
Figure 7: Garbage collection statistics at the middle of the load test.
One more dashboard to note during a performance test is the CPU Sampling dashboard. The figure below shows a generated report that captures the CPU process over 100 seconds. This shows unwanted processes slowing down a Liferay DXP instance.

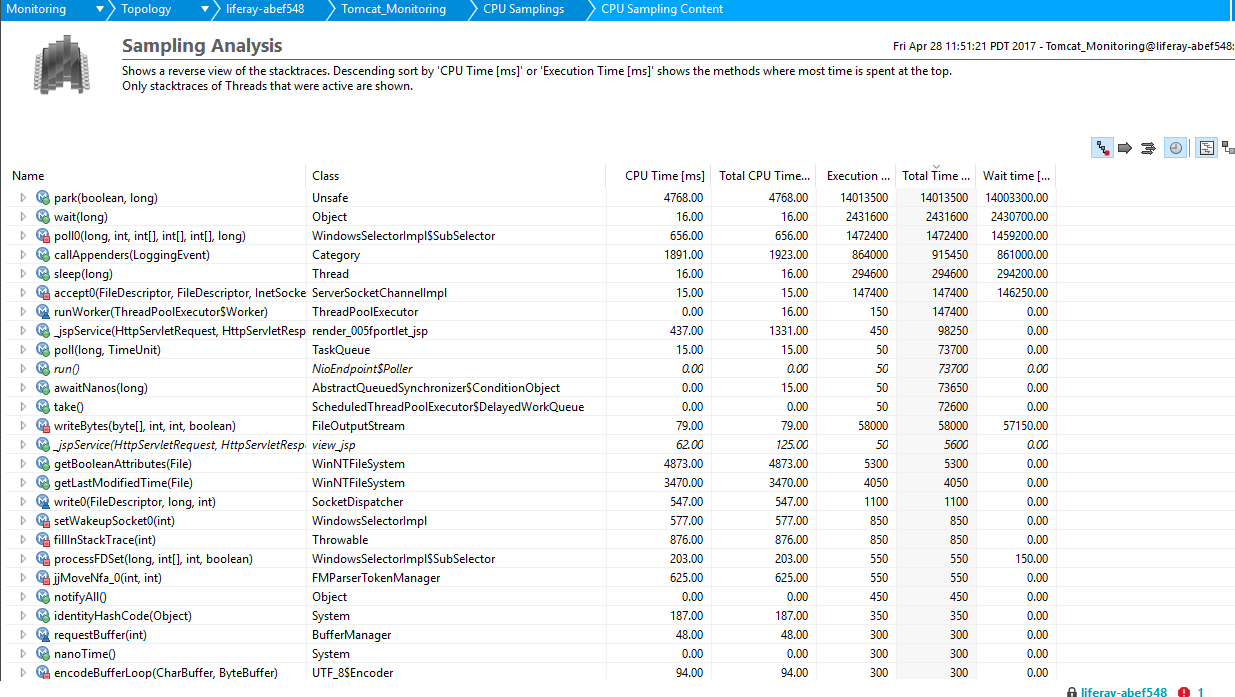

Figure 8: Dynatrace Client can generate a CPU Sampling report.
All these dashboards come out-of-the-box, and even more dashboards are available after deploying the Dynatrace FastPack developed for Liferay DXP. Dynatrace provides many useful performance monitoring features.
