- Android SDK 4.0 (API Level 15) or above
- Liferay Portal 6.2 (CE or EE), Liferay 7.0 CE, Liferay DXP
- Liferay Screens Compatibility plugin (for Liferay Portal CE or Liferay Portal EE).
- Android SDK 4.0 (API Level 15) and above
- Visual Studio 7.2
- Mono .NET framework 22.214.171.124
The Asset List Screenlet can be used to show asset lists from a Liferay instance. For example, you can use the Screenlet to show a scrollable list of assets. It also implements fluent pagination with configurable page size. The Asset List Screenlet can show assets belonging to the following classes:
The Asset List Screenlet also supports i18n in asset values.
Screenlets in Liferay Screens call JSON web services in the portal. This Screenlet calls the following services and methods.

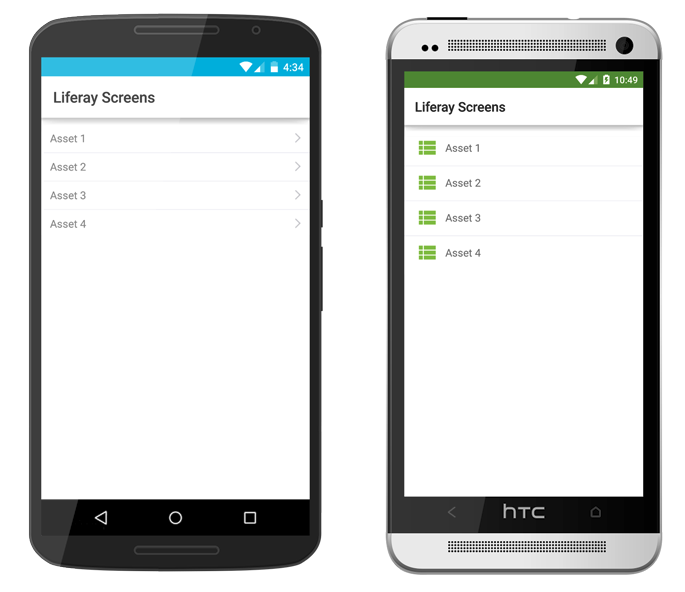

The Default Views use a standard
RecyclerView to show the scrollable list.
Other Views may use a different component, such as
ViewPager or others, to
show the items.
Also, Liferay Screens’ Compatibility Plugin
must be installed to allow remote calls without the
This Screenlet supports offline mode so it can function without a network connection. For more information on how offline mode works, see the tutorial on its architecture.
|Policy||What happens||When to use|
|The Screenlet loads the list from the portal. If a connection issue occurs, the Screenlet uses the listener to notify the developer about the error. If the Screenlet successfully loads the list, it stores the data in the local cache for later use.||Use this policy when you always need to show updated data, and show nothing when there’s no connection.|
|The Screenlet loads the list from the local cache. If the list isn’t there, the Screenlet uses the listener to notify the developer about the error.||Use this policy when you always need to show local data, without retrieving remote information under any circumstance.|
|The Screenlet loads the list from the portal. If this succeeds, the Screenlet shows the list to the user and stores it in the local cache for later use. If a connection issue occurs, the Screenlet retrieves the list from the local cache. If the list doesn’t exist there, the Screenlet uses the listener to notify the developer about the error.||Use this policy to show the most recent version of the data when connected, but show an outdated version when there’s no connection.|
|The Screenlet loads the list from the local cache. If the list isn’t there, the Screenlet requests it from the portal and notifies the developer about any errors that occur (including connectivity errors).||Use this policy to save bandwidth and loading time in case you have local (but probably outdated) data.|
If you don’t set
classNameId, you must set this attribute instead:
|The layout to use to show the View.|
|Whether the list should be loaded when it’s presented on the screen. The default value is |
|The asset’s group (site) ID. If this value is |
|The offline mode setting. See the Offline section for details.|
|The archive name you used in the Asset Publisher. To use this feature, add an Asset Publisher to one of your site’s pages (it may be a hidden page), configure the Asset Publisher filter (Asset Selection on configuration page), and then use the Archive Setup option to save this configuration with a name. Use this name in this attribute.|
|The asset class name’s ID. Use values from the portal’s |
|The number of items to retrieve from the server for display on the list’s first page. The default value is |
|The number of items to retrieve from the server for display on the second and subsequent pages. The default value is |
|The comma-separated names of the DDL fields to show. Refer to the list’s data definition to find the field names. For more information on this, see Defining Data Types. Note that the appearance of these values in your app depends on the |
|The set of keys (string) and values (string or number) to be used in the AssetEntryQuery object. These values filter the assets returned by the portal.|
|Starts the request to load the specified page of assets. The page is shown when the response is received.|
Asset List Screenlet delegates some events to an object or a class that
This interface lets you implement the following methods:
onListPageFailed(int startRow, Exception e): Called when the server call to retrieve a page of items fails. This method’s arguments include the
Exceptiongenerated when the server call fails.
onListPageReceived(int startRow, int endRow, List<Model> entries, int rowCount): Called when the server call to retrieve a page of items succeeds. Note that this method may be called more than once; once for each page received. Because
endRowchange for each page, a
0corresponds to the first item on the first page.
onListItemSelected(Model entries, View view): Called when an item is selected in the list. This method’s arguments include the selected list item (
error(Exception e, String userAction): Called when an error occurs in the process. The
userActionargument distinguishes the specific action in which the error occurred.
